Radial Press Holders

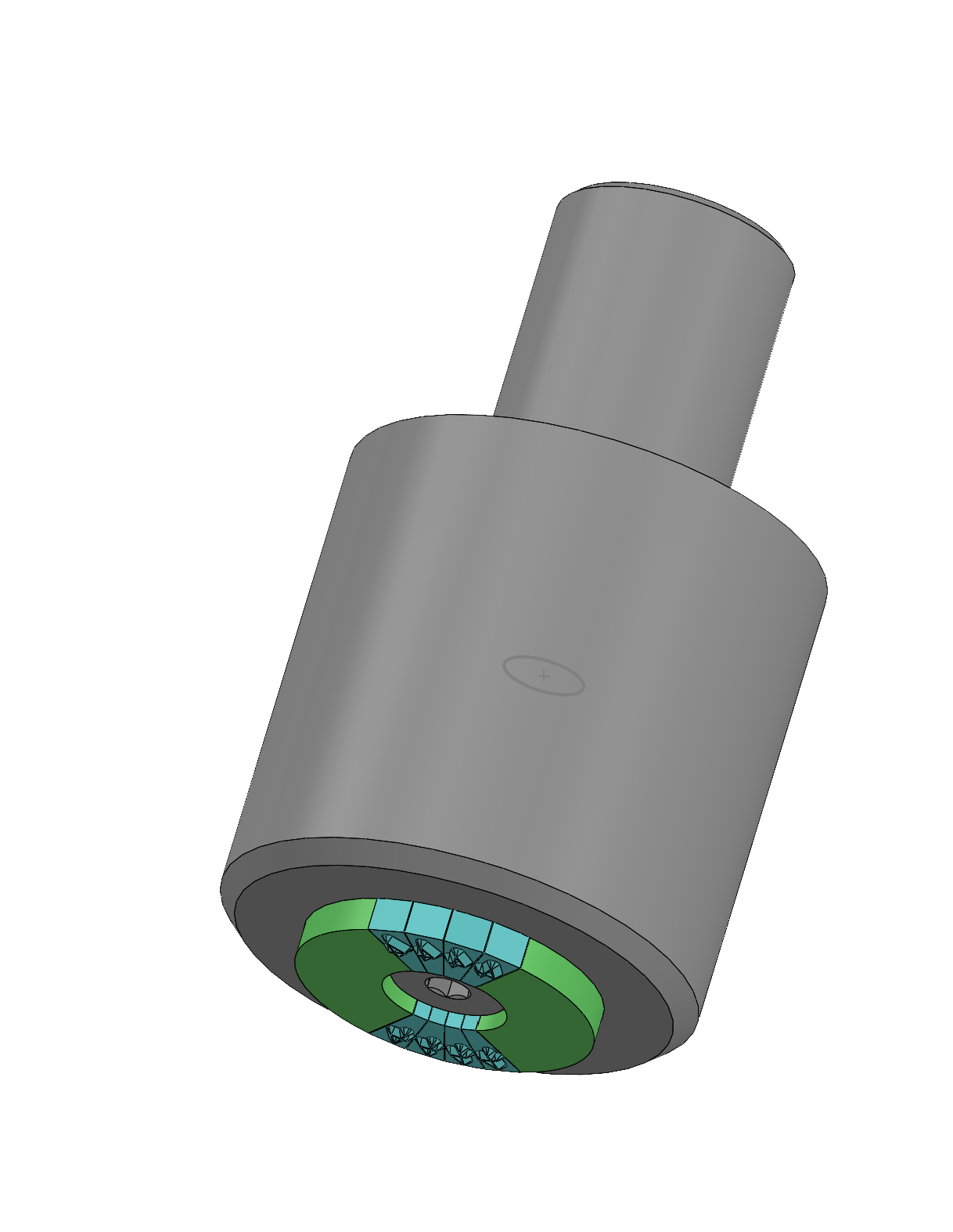

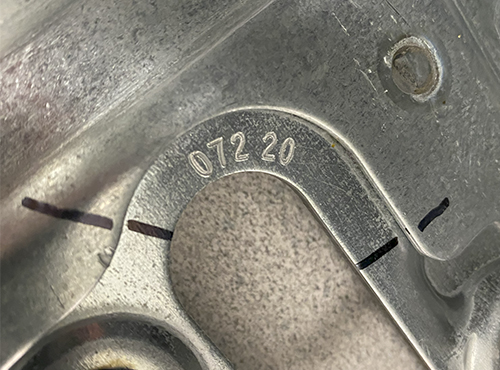

The radial type holder retains steel type in a circular pattern. The holder can mark flat surfaces with characters in an arch or circular path.

Technical Data Sheet

Applications

These specially designed holders and type are used for applications with the following requirements:

Constant marking legend or changed daily
Flat surface
Deep fast mark
Low cost, as compared to dot-peen or laser marks

Ideal parts for radial marking:

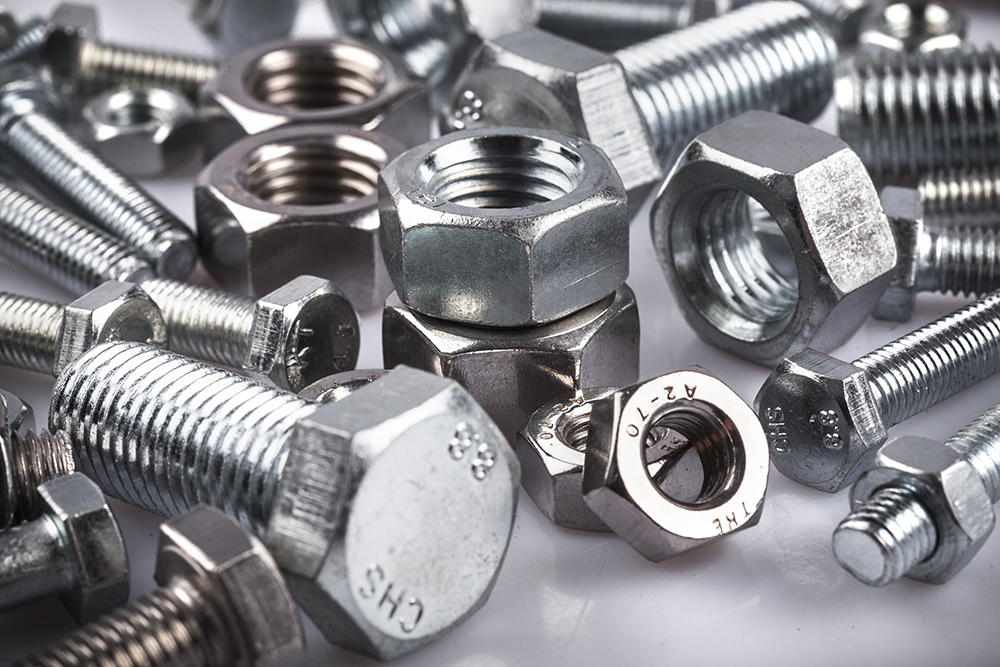

Gear Blanks
Pulleys
Shafts
Bearings
Wheels
Bushings

Request Quote

Radial Press Holder Details

Radial marking tooling

CMT designs and manufactures the radial type tools to fit each individual application.

Components required for sucessful Embossing application:

Character size
Radius to center of character, or a maximum and minimum diameter for the marking.
Number of characters
Shank Diameter (SA) and length (SL)
Pilot Diameter (PA) and length (PL)
Number of type required and readings of multi-character stamps
Number of spacers required

All radial type holders and type are custom designed. During the design process an approval drawing is sent for review prior to release for manufacturing.
