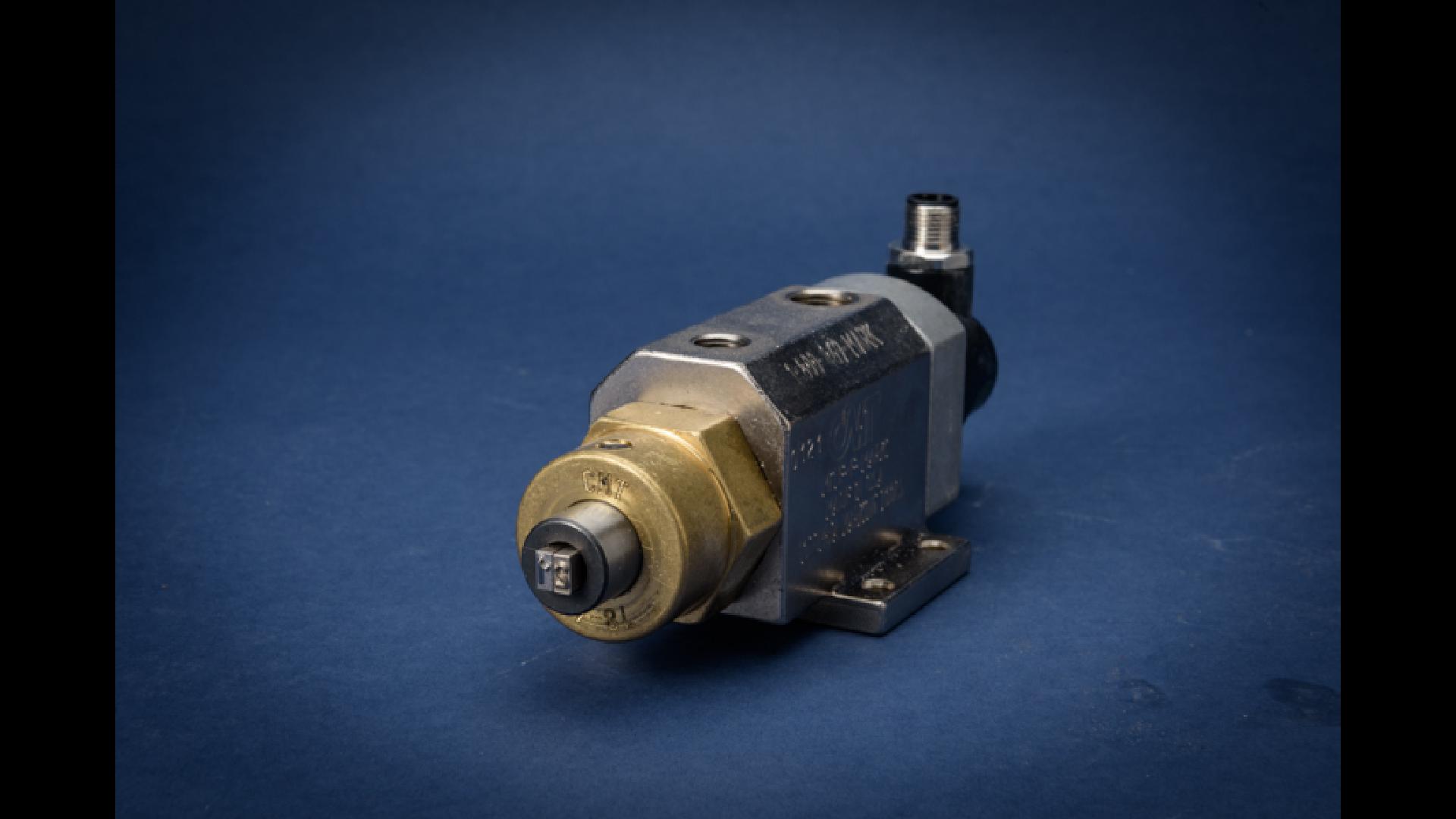

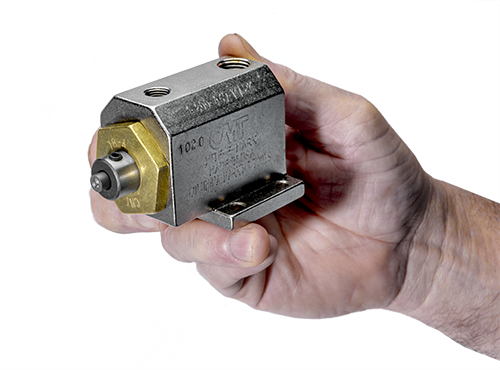

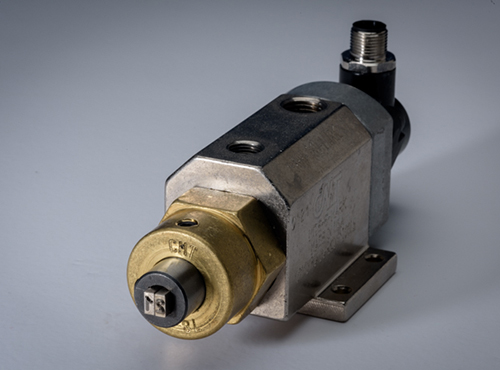

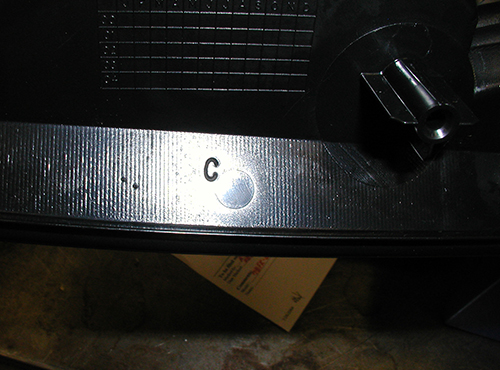

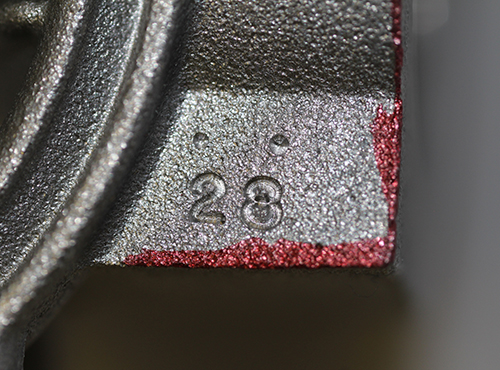

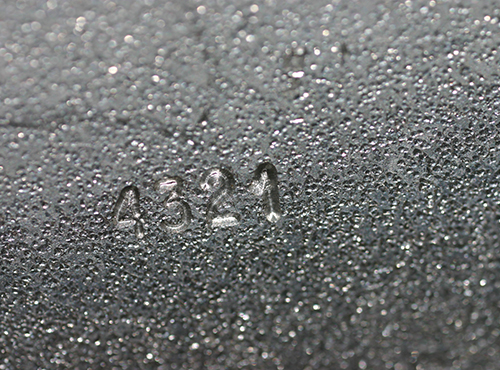

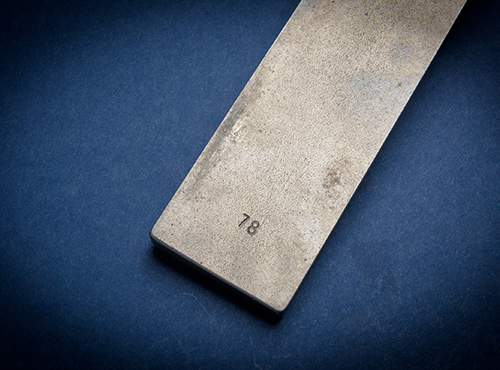

The COMPACT Columbia Model 78 is an impact marking cylinder designed for robust and reliable performance. Here are the key features:

1. Design: The model is built as a rugged pneumatic tool with various pockets at the rod end for stamp character inserts, allowing it to deliver powerful impact blows.
2. Impact Force: Capable of delivering a substantial impact force of up to 2,500 lbs at 80 psi (pounds per square inch). This makes it suitable for various industrial marking applications.
3. Solid Body: Solid one piece body machined from quality tool steel.
4. Dependability: The Model 78 is highlighted as a dependable marker, offering reliable performance while maintaining a low investment cost.
5. Rod Action: The rod features air forward and air return double acting motion for maximum reliability in automated applications.

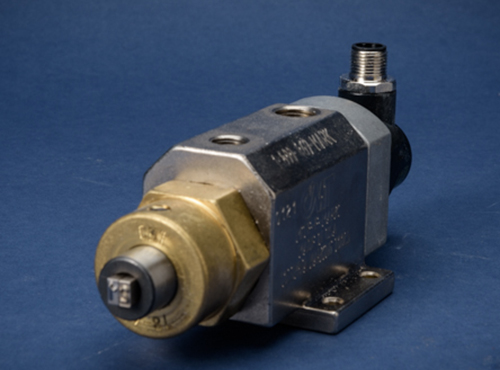

6. Keyed Non-Rotating Rod: The Mite-E-Mark can be upgraded with a keyed and non-rotating rod, ensuring precision and accuracy in the marking process.It is also available without the keyway in a more compact and smaller foot print to fit into tight locations.
7. Stroke Length: The model offers 1" and 2" inches of stroke, providing versatility for different marking requirements.

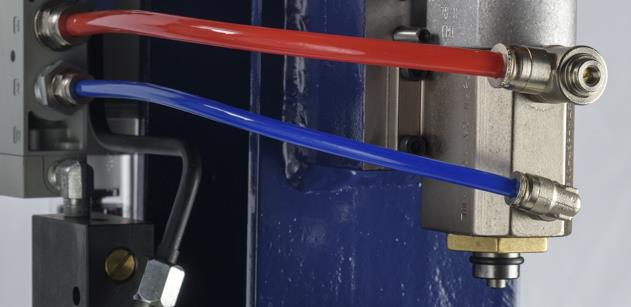

8. Compressed Air Requirement: The compressed air provides the propusion to move the ram/rod forward and this mass in motion provides the over 1 ton of impact force.

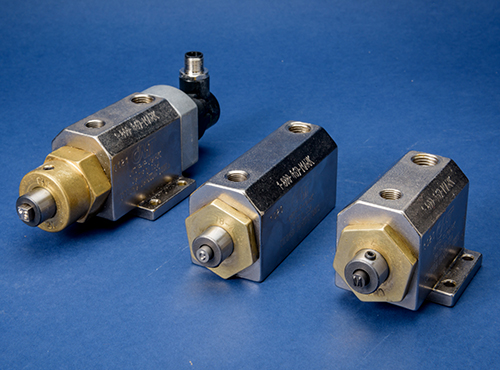

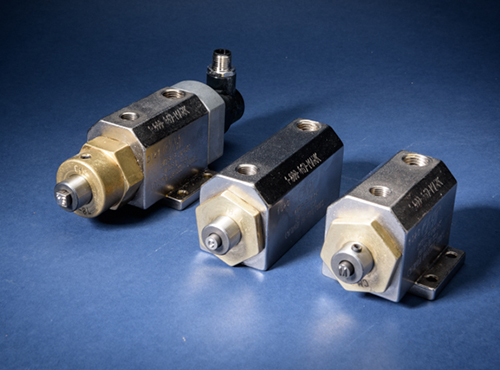

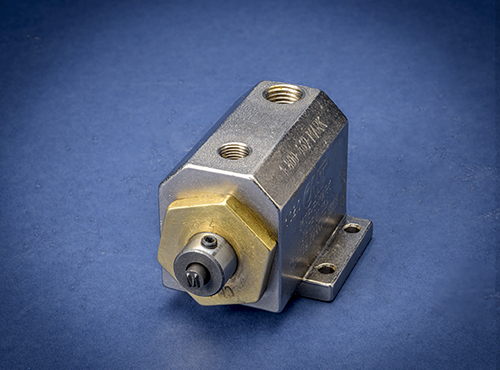

3 Different configuration examples of the Model 78 MIte-E-Mark

(L) Left -(C) Center - (R) RIght

Rotating =

Non-Keyed (Rotating) (CR)

Keyed (Non-Rotating) (L)

Rod Styles =

Muti-character OA for CMF flat type (L)

Muti-character GA for CMV groove type

Single character OB for CM7X round insert (CR)

Single character BG for CM7G round insert

Stroke Length =

1.0" (LR)

2.0" (C)

End Configurations =

Standard (CR)

24VDC Return Sensor (L)

110VAC Return Sensor

Compressed Air Supply =

Lubricated

Dry

Stamp Capacities Rod Style “B” =

(1) Pc CM7X round insert can mark up to a 1/4” character.

Stamp Capacities Rod Style “GB” =

(1) Pc CM7G round insert can mark up to a 1/4” character.

Stamp Capacities Rod Style “A” =

(4) Pc’s 1/16” Char. of CMF06 Stamp Inserts. (2) Pc’s 1/8” Char. of CMF13 Stamp Inserts

Stamp Capacities Rod Style “GA” =

(4) Pc’s 1/16” Char. of CMV06 Stamp Inserts. (2) Pc’s 1/8” Char. of CMV13 Stamp Inserts

“GA” and “GB” Rods for systems with excessive vibrations. The standard “OA” and “OB” rods use a set screw to retain the stamps. For most applications this works very well. However, machines with excessive vibrations can cause the stamps to randomly fall out. CMT has a solution. The “GA” and “GB” rod use a pin and oring to assure solid retention for shaking machines.

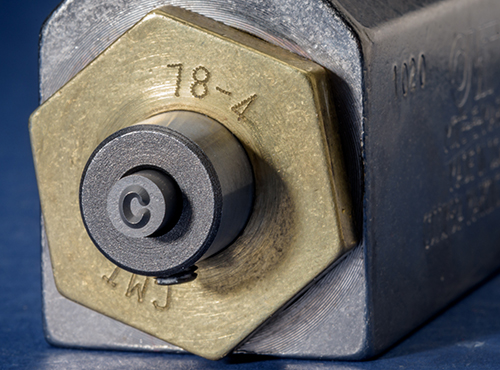

Model 78 rod style B

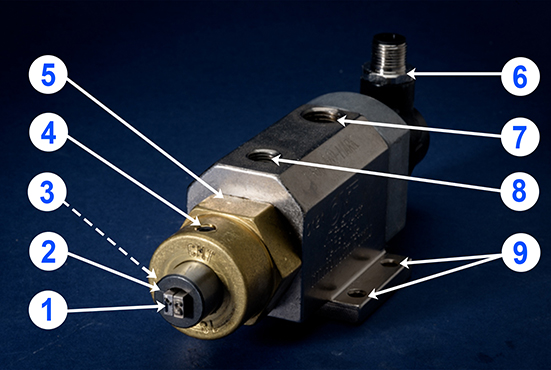

1. Stamp - wearable part
2. Rod/Stamp Holder
3. Set screw - Retains stamp wearable part
4. Keyway - maintains orientation of stamp(s)
5. Front Nut - remove for maintenance
6. Optional Upgrde- Return position sensor
7. Advance Port - 1/4" NPT
8. Retract Port 1/8" NPT
9. Foot Mounting shown (also available with rear mounting, without position sensor)

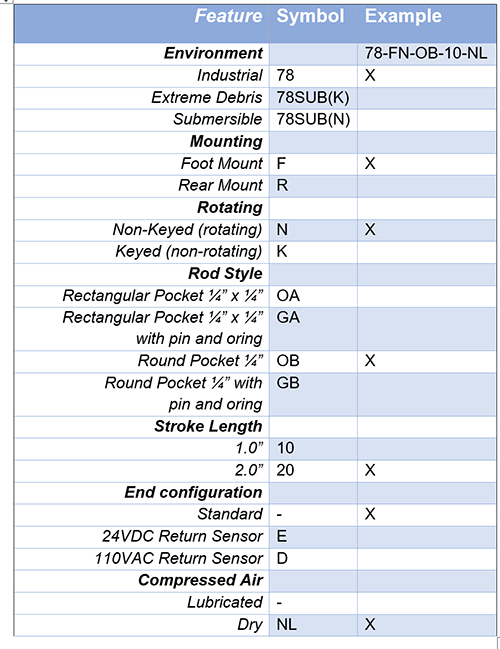

Select options from the chart to build the complete part number.

Selections:

• Environment
• Mounting Location
• Rotating or Non-Rotating Rod
• Rod Style/Type Holder
• Stroke Length
• End configuration
• Air Supply

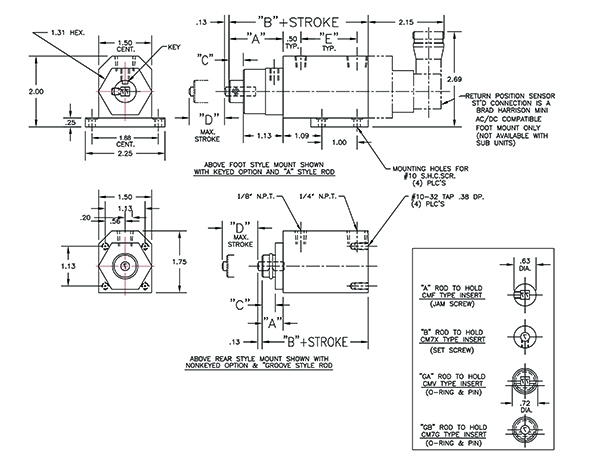

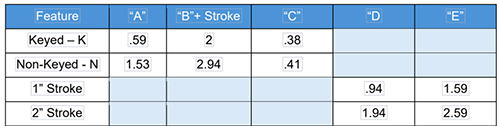

The dimensions vary by the features selected. Please see above chart for variable dimensions. The best way to ensure that the compact Mite-E-Mark Model 78 fits into your design is to use CAD files.

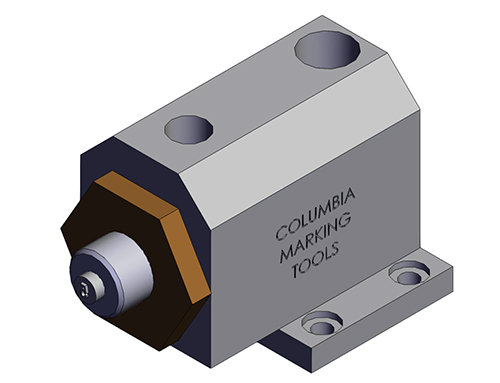

Drawings for all the models. CAD files formats of many different configurations.

Technical Specifications:
