Hot Stamping
CMT Hot Stamping type and Dies

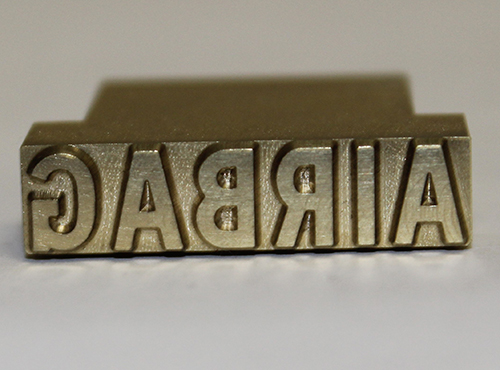

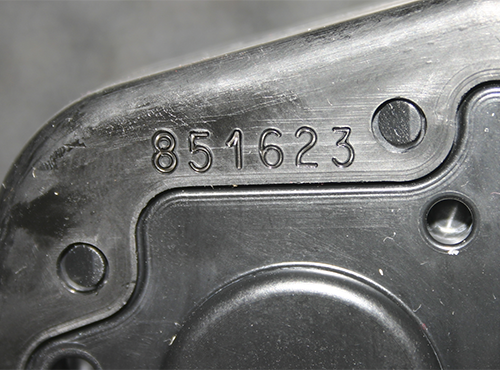

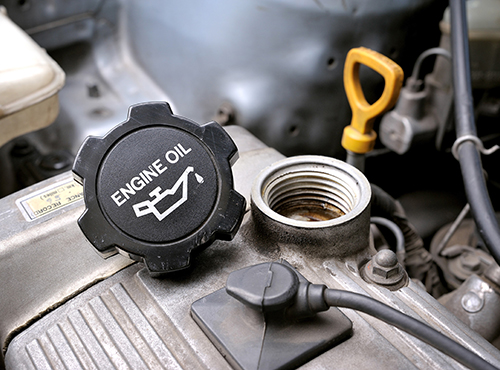

Hot stamping type requires a flat face character. This flat face character allows for more surface area of the die to be in contact with the part. This allows for faster transfer of heat and better and faster marking of plastic material. In addition, the wider face of the characters will allow for greater foil transfer to provide a clear contrasting mark.
Columbia Marking Tools Hot Stamping Dies & Stamps
Comprehensive guide for hot tamping dies and stamps.

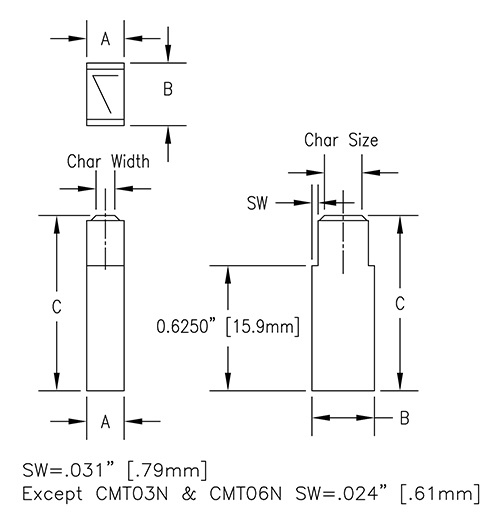

- A =
- Width
- B =
- Height
- C =
- Length
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:

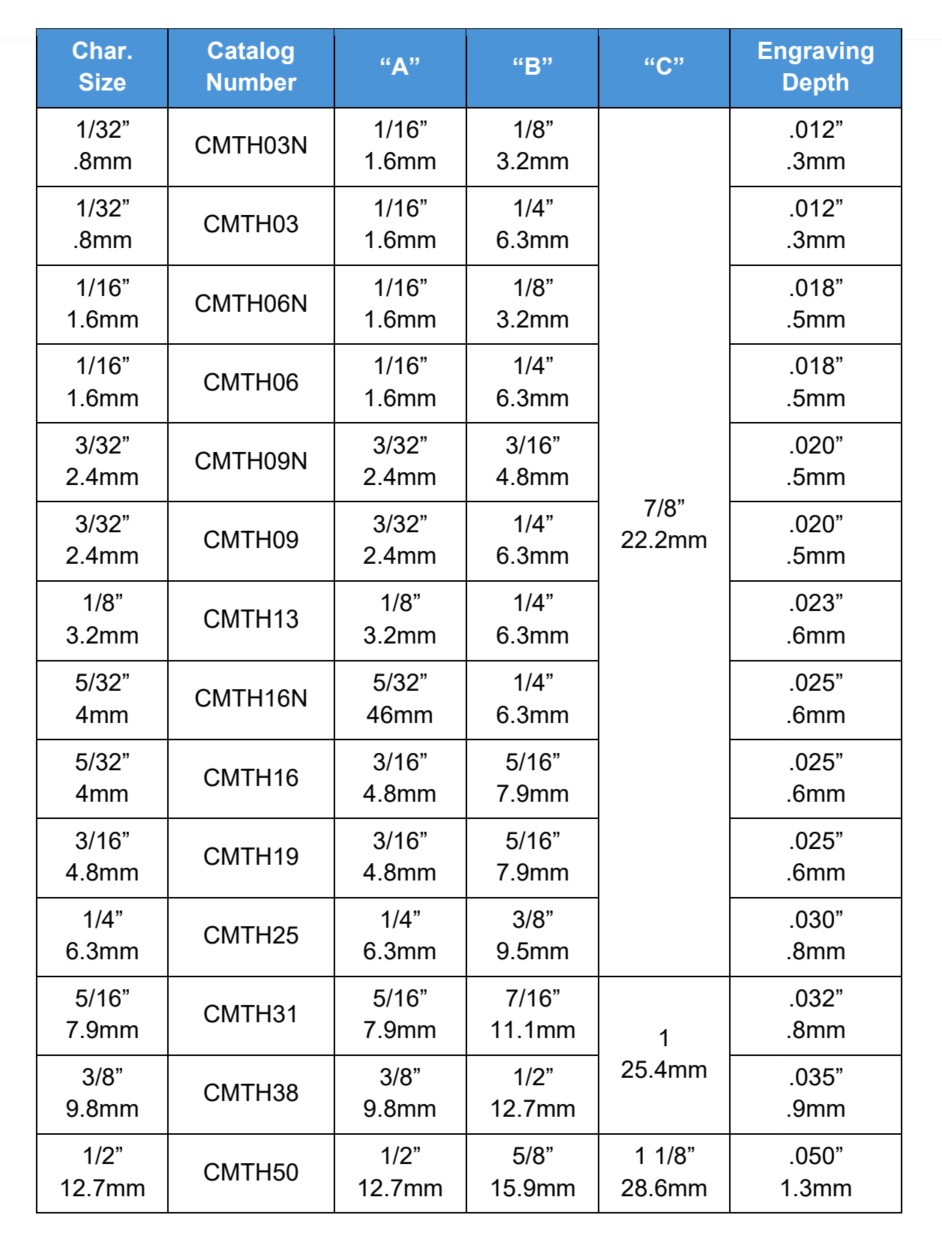

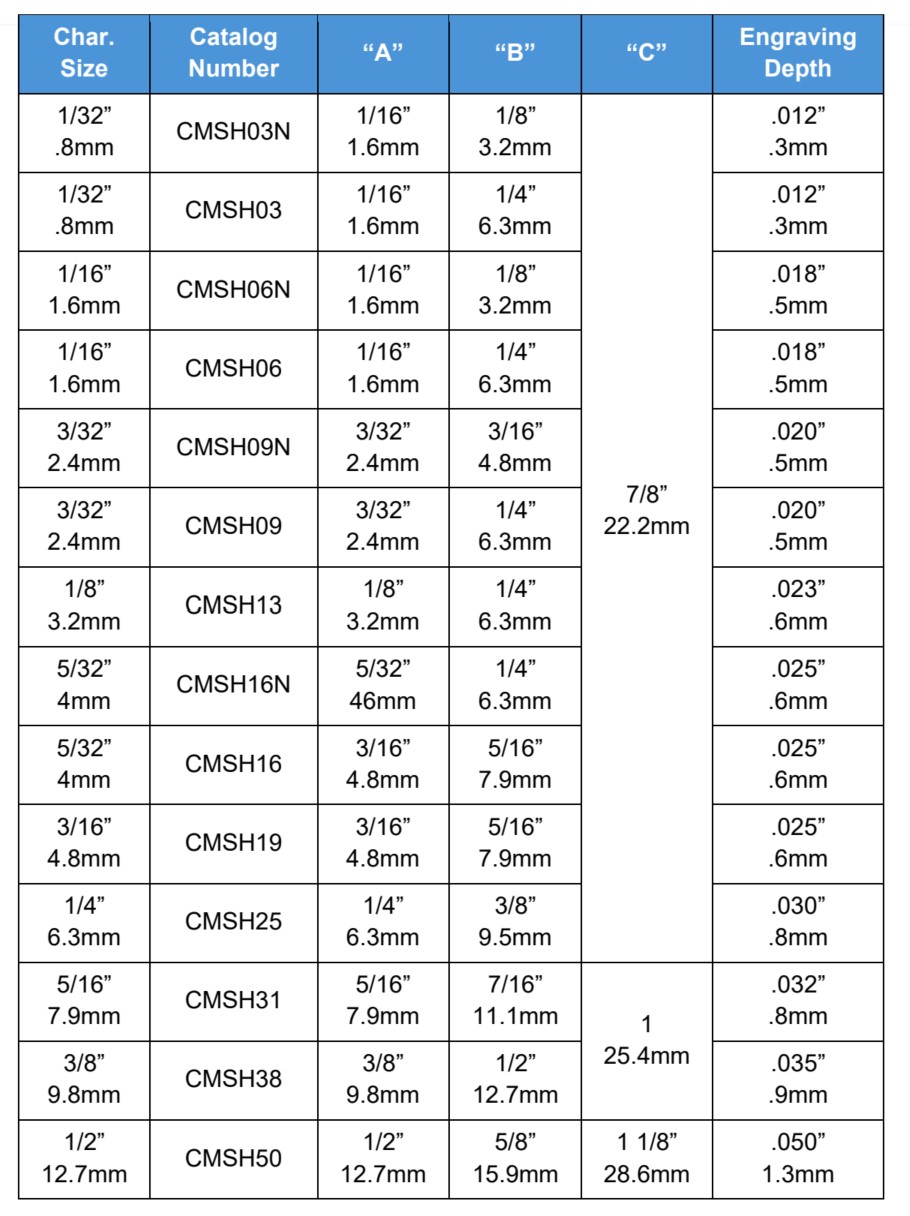

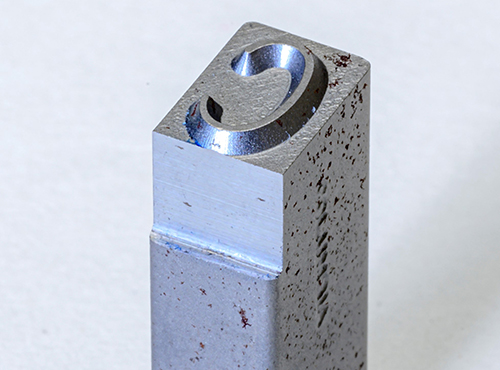

Standard CMSH Step Type are engraved as flat face characters. The wide face of the character allows for easy ransfer of heat.

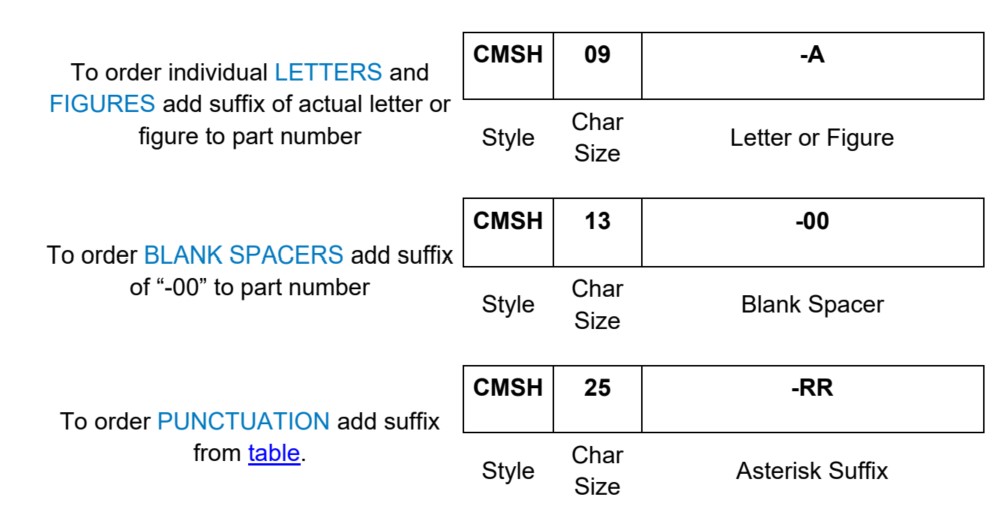

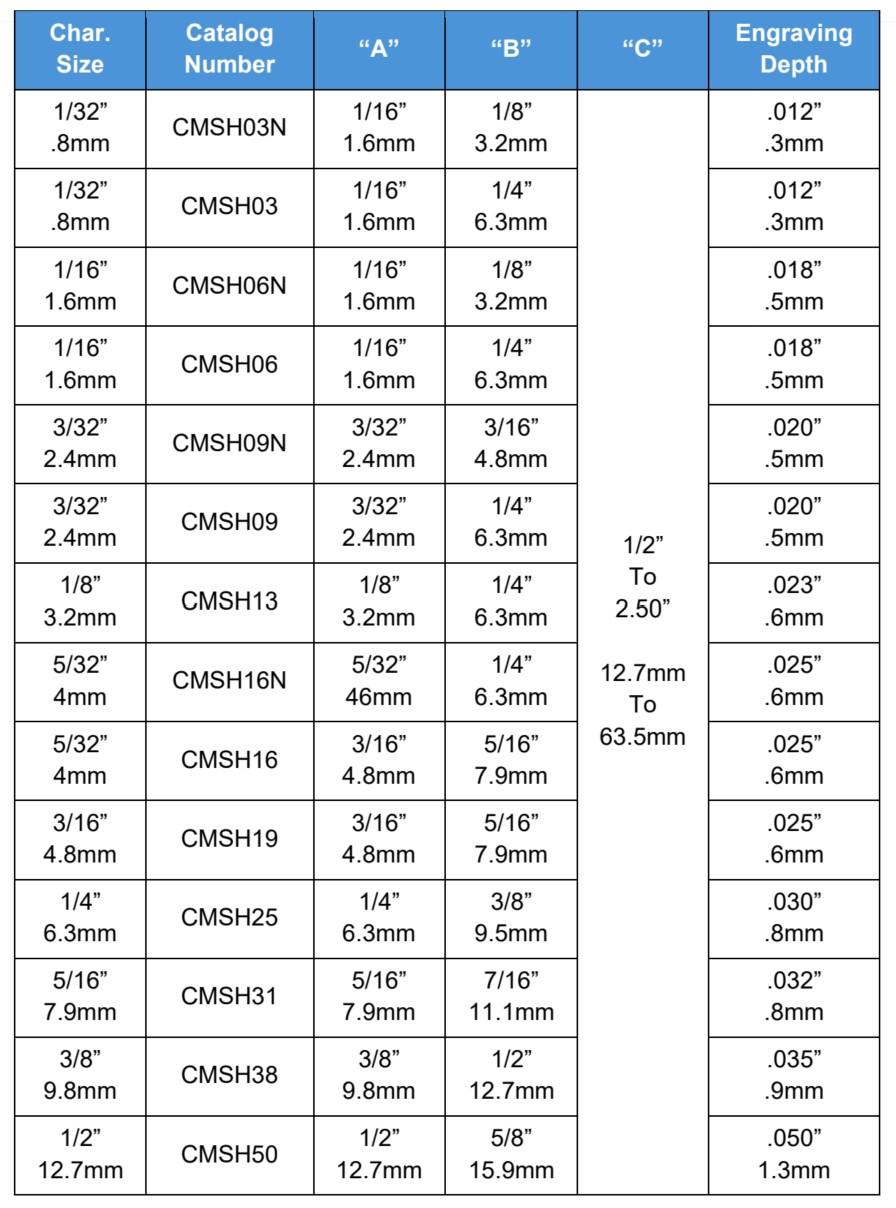

Build Catalog Number as shown:

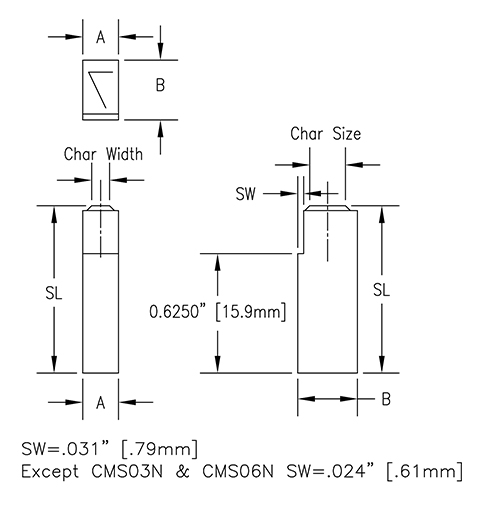

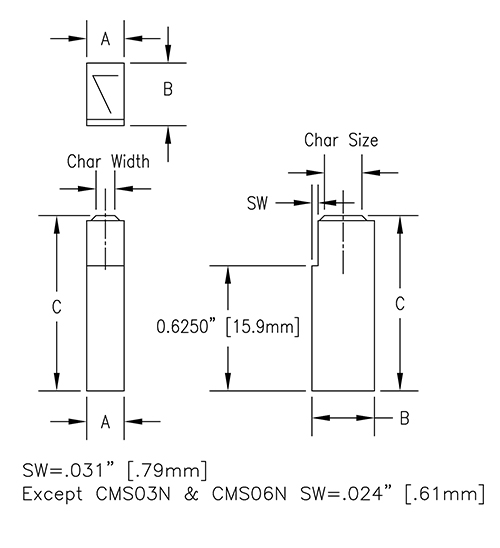

- A =
- Width
- B =
- Height
- SL =
- Special Length from 1/2" to 2.5"
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:
Standard CMSH Step Type are engraved as flat face characters. The wide face of the character allows for easy ransfer of heat.

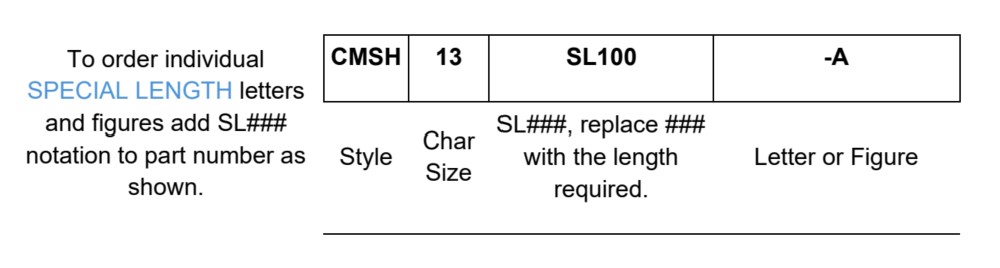

Build Catalog Number as shown:

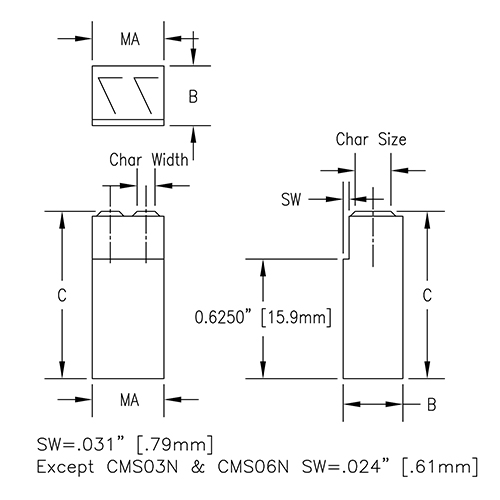

- MA =
- Width is determined by the number of character and spaces. Multiple the standard width of A by the total number of character and spaces.
- B =
- Height
- C =
- Length
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:
Benefits of multi-character dies:
Standard LCMSH Step Type are engraved as flat face characters. The wide face of the character allows for easy ransfer of heat.

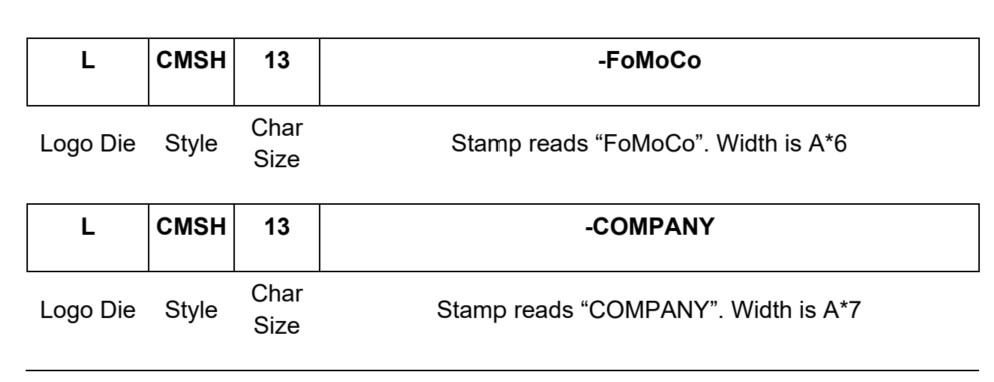

Build Catalog Number as shown:
- A =
- Width
- B =
- Height
- C =
- Length
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:
Standard CMSH Step Type are engraved as flat face characters. The wide face of the character allows for easy ransfer of heat.

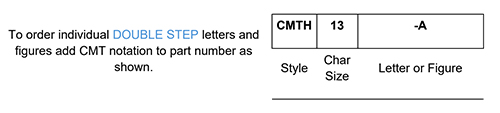

Build Catalog Number as shown:
Char Size – Measured from the top of the character.
Char Width – All sizes are Style 3A, width is 60% of the character size.
Except 3/16” character size style 2A, width 50% of the character size.
Tolerance - +.000”/-.001” on all dimensions.
Char Size – Measured from the top of the character.
Char Width – All sizes are Style 3A, width is 60% of the character size.
Except 3/16” character size style 2A, width 50% of the character size.
Tolerance - +.000”/-.001” on all dimensions.

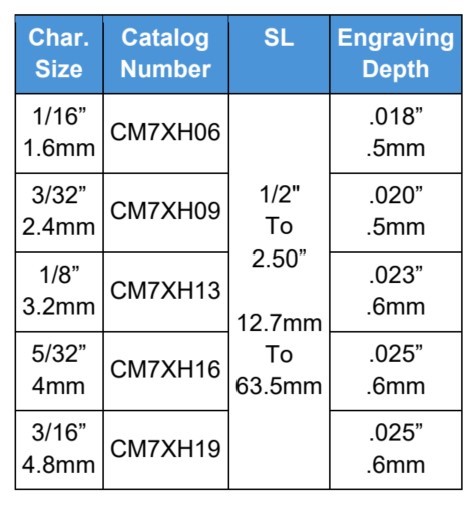

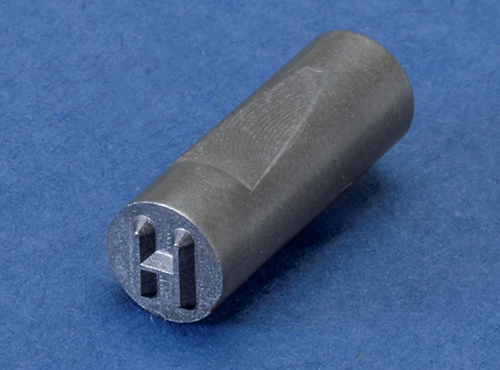

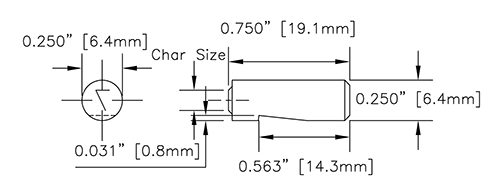

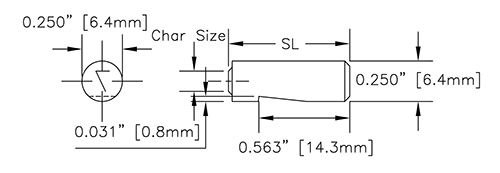

Standard CM7XH Round Inserts are engraved as flat face characters. The wide face of the character allows for easy ransfer of heat.

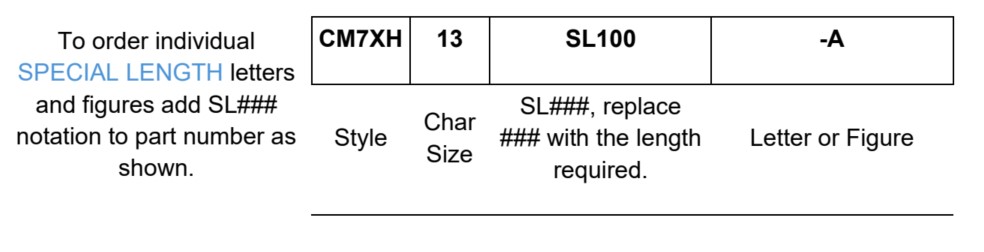

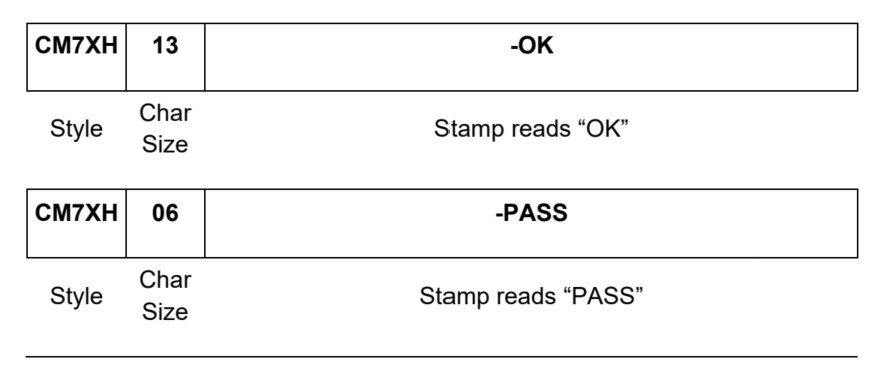

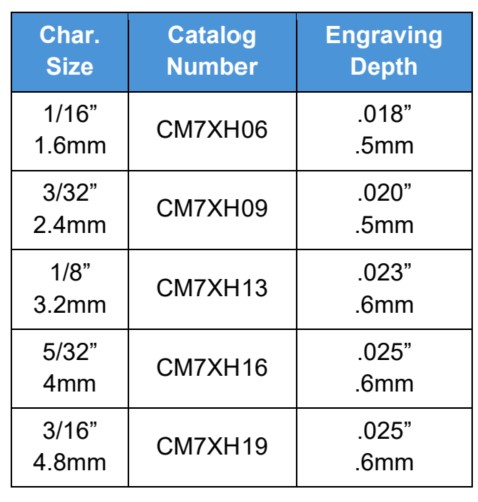

Build Catalog Number as shown:

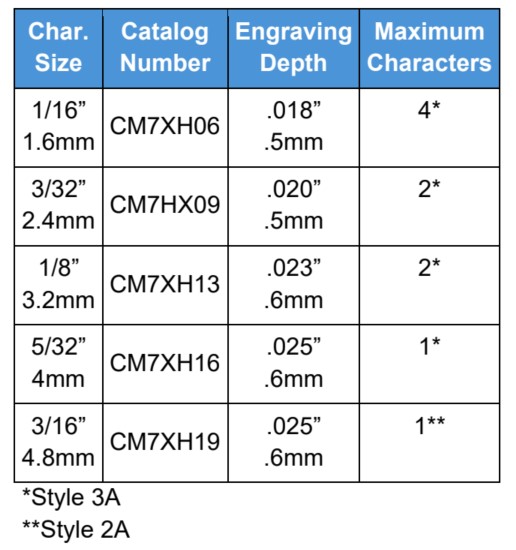

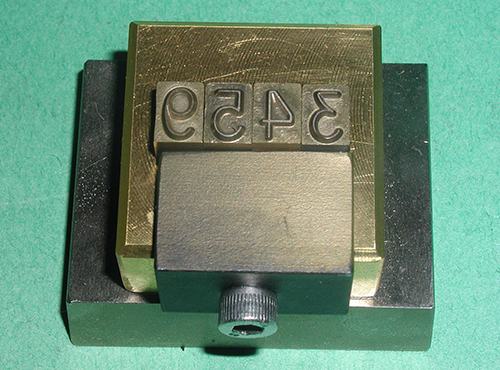

Multi-character round inserts are great for static marking lengends and QC marks.

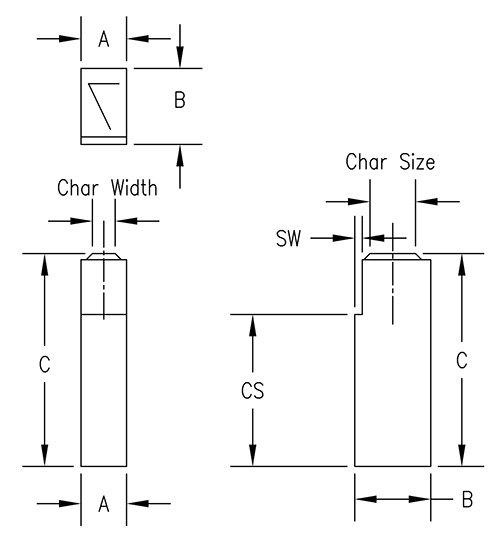

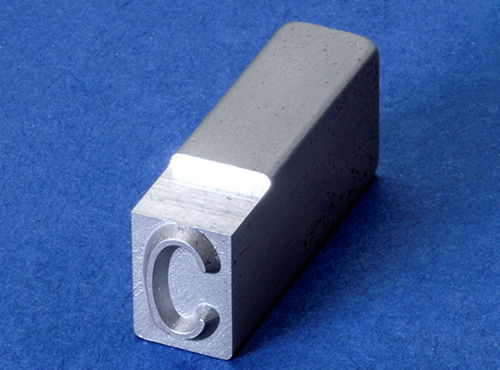

Please provde the following paramters for a custom CMSH Step stamp.
- A =
- Width
- B =
- Height
- C =
- Length
- SW =
- Step Width
- CS =
- Height of Step (from back of stamp)
- Character Size =
- Measured from the tip of the character
- Character Width =
- Standard width is Style 2A, width is 50% of the character size. Standard to be used if no additional information is provided.
Standard Technical Specifications:
Columbia Marking Tools can design and manufacture custom groove type and dies. CMT can provide a quotation to any customer custom print. The print or the request may be sent to quotes@columbiamt.com.
Customizations
- Dimensions
- This is the most common customization. A – Width, B – Height, C – Length, and groove dimensions.
- Font
- Classic style and replication.
- Material
- Standard tool steel to high speed.
- Engraving Angle
- For deeper marks or wear.
- Engraving Depth
- Chart of standard sizes
CMT will provide standard parameters for any component not defined by request or print.
