Diameter 2 Diameter Roll Marking Machine: Model 960

Model 960 D2D Roll Marking
CMT Model 960 cradle example 1

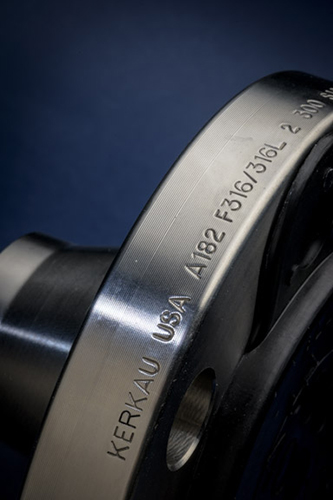

CMT Model 960 mrked part example 1
Model 960 D2D Roll Marking

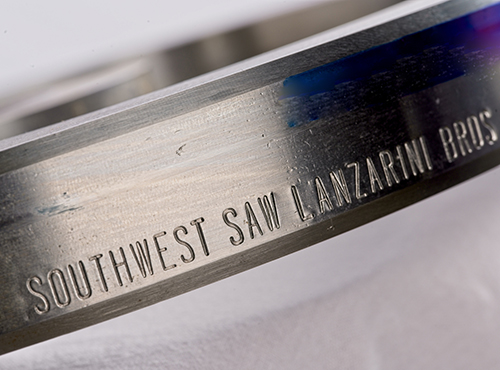

CMT Model 960 mrked part example 2
CMT Model 960 mrked part example 2

Diameter to Diameter Roll Marking Machine

Diameter 2-diameter roll marking is a great solution for marking long legends on the outer diameter of large round parts. The reduced contact between the tooling and the parts requires less force to create the industrial mark, making the process more efficient. Additionally, this tooling style minimizes floor space requirements, leading to cost savings in both machinery and manufacturing footprint.

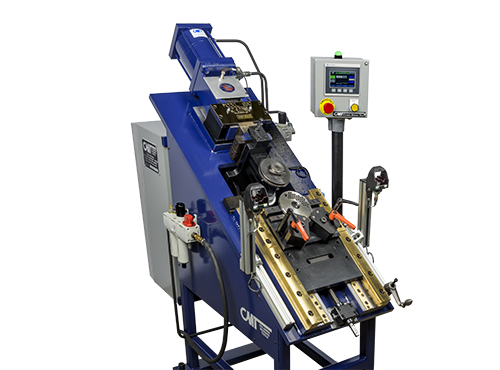

The 960-A43 is a custom floor-style, air-powered roll marking machine designed for precision and efficiency. Engineered for durability and ease of use, this machine delivers high-quality markings on small to large diameter parts while ensuring minimal stress on the material.

D2D Diameter to Diameter Marking Machine

Model 960Industrial High Production

Technical Data Sheet

Station Components

CMT Model 960 Marking Machine specifications:

  • Heavy-Duty Steel Frame: Provides stability and durability for long-term use"
  • Ergonomic Tilt Design: Facilitates effortless part loading and accommodates various part sizes.
  • Extended Marking Capability: Supports up to a 10" legend mark length for enhanced versatility.
  • Low Pressure, Low Stress Marking: CMT’s exclusive Pressure Seek and Find Mark Depth Control ensures consistent, high-quality markings.
  • Touchless Palm Buttons: Ergonomically designed with protective ring guards for enhanced safety and efficiency.

CMT provides complete automation solutions including field-bus or PLC for robotic cell integration.

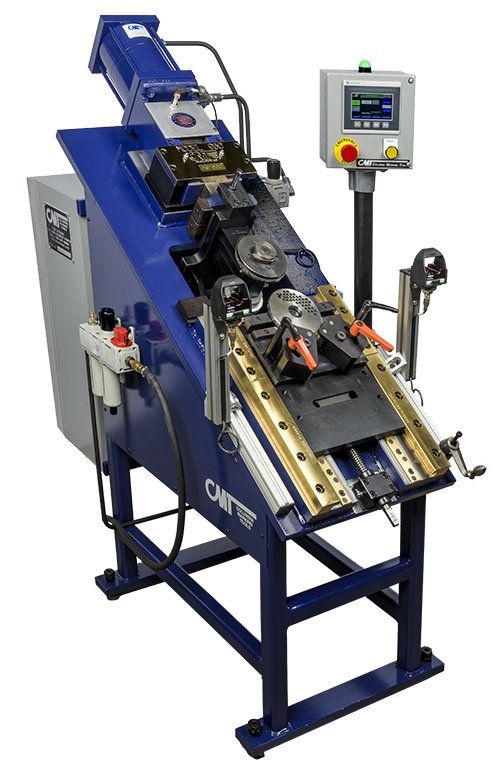

Model 960 D2D Roll Marking Machine

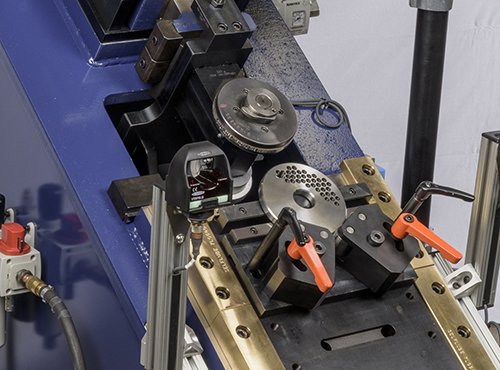

960 Roll Cradle 1

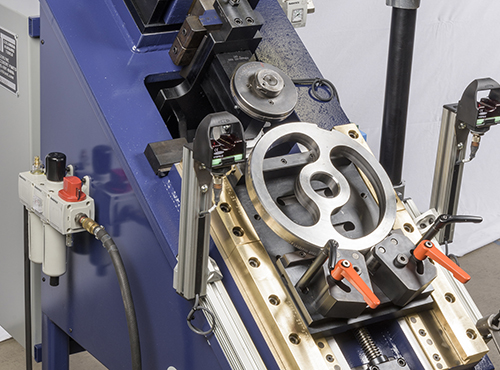

960 Roll Cradle 2

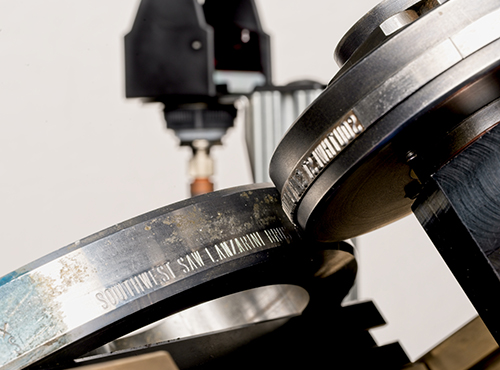

Model 960 Holder example

Marking Tooling

D2D or Diameter to Diameter roll marking requires both round makirng tooling and roll cradles to rotate round parts.

Roll Type Holder - Extra large to accomdate long marking legends

Interchangeable type of segments for flexible marking legends.

Roll Cradles - wide range of sizes

Selection of roll cradles to holder very small round parts to very large round parts.

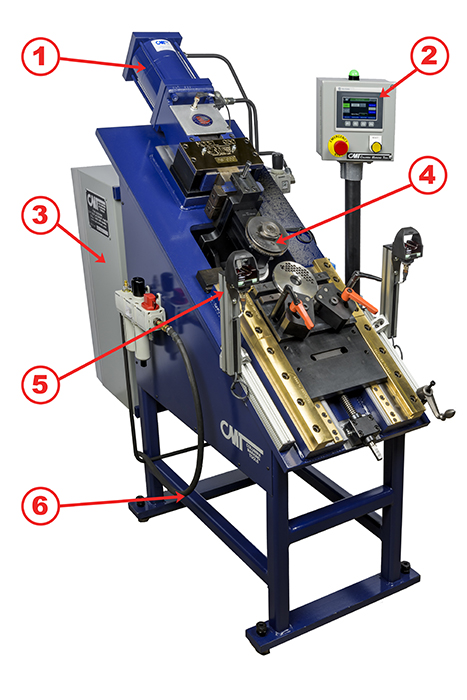

Station Details

  1. Ram
  2. Machine controls
  3. Machine mounted control panel
  4. Roll type holder
  5. Master fixture plate - roll cradle shown
  6. Osha Required palm buttons, or optional configuration for robotic automated cell
  7. Frame with industrial floor base

Acessories include: Roll type holder, Stamping type and segment dies, roll cradles for part rotation.
