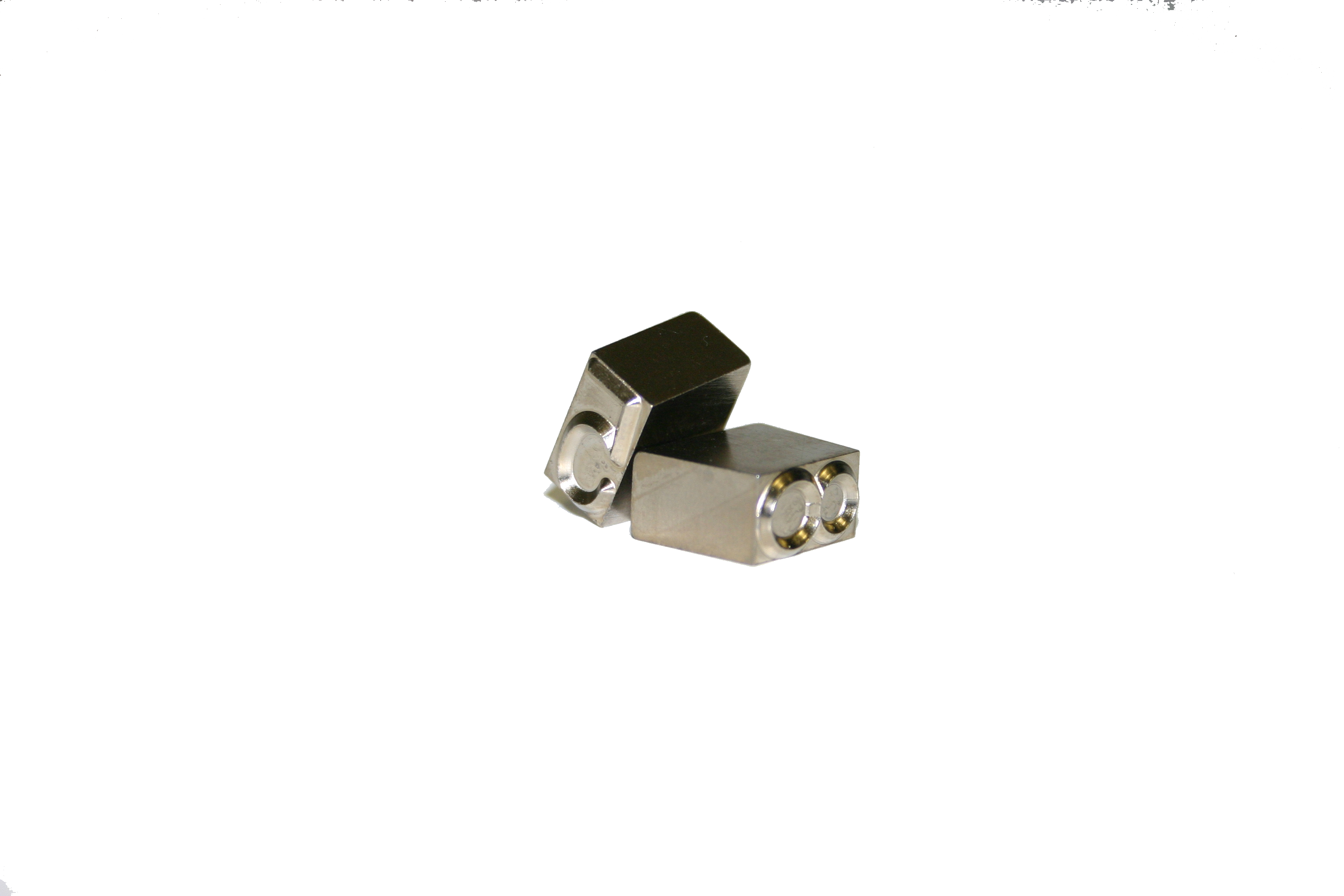

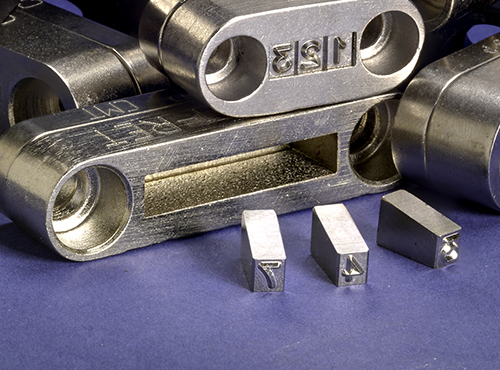

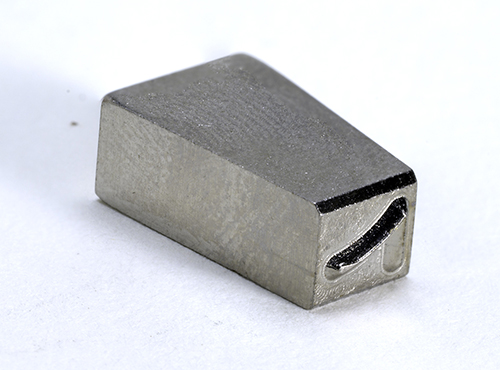

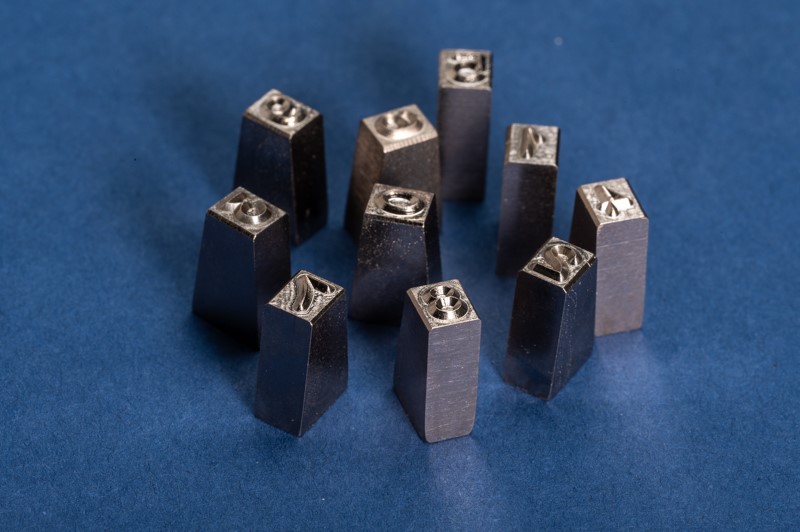

CMM Wedge Type and Retainers
Part Marking for Stamping Operations
The industial standard Wedge type and retainers are great for part numbering and part tracking information. This tool is used for part numbers, date and shift codes. The addition of part tracking will provide invaluable details for any production improvement projects.
- Automotive standard
- Factory Direct for price savings
Columbia Marking Tools Wedge Type & Retainers
Data Sheets for Stamping Operations.

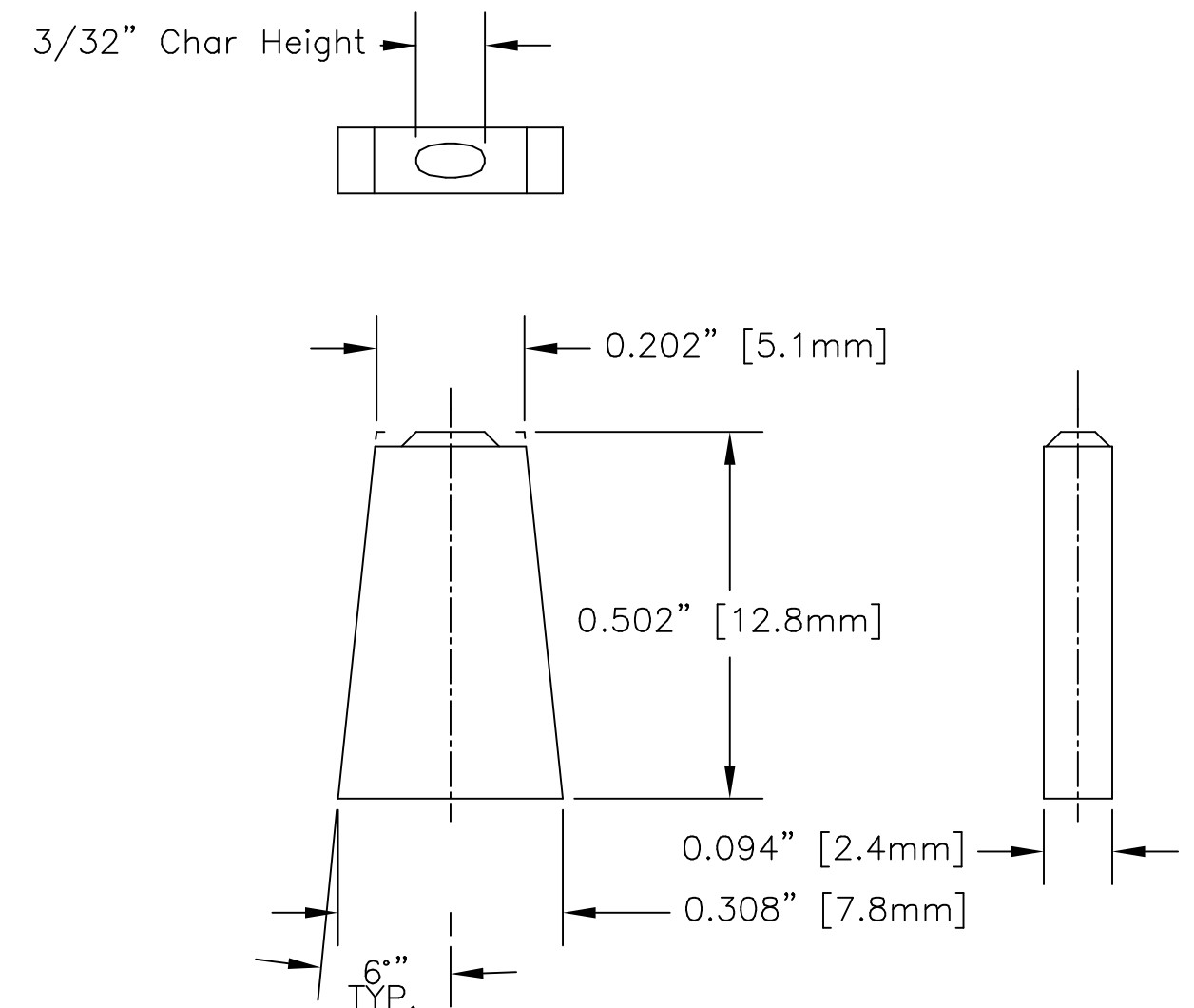

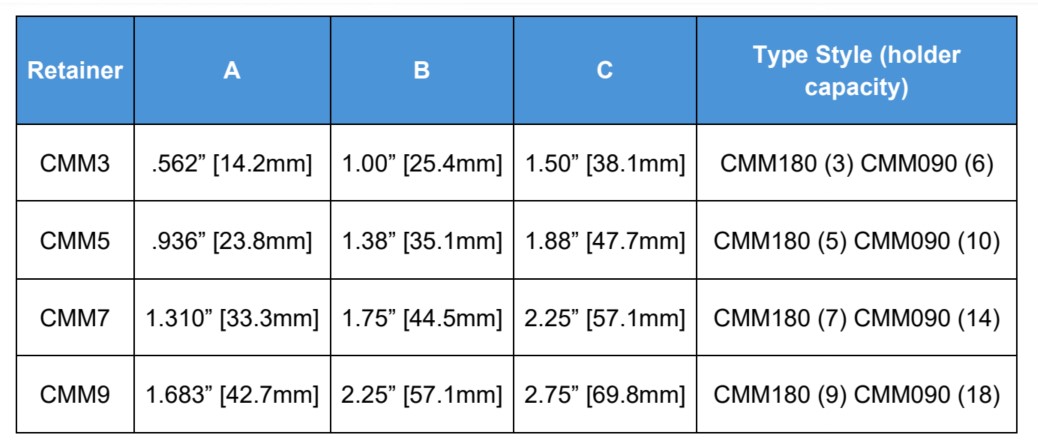

Part #CMM090-X
- Character Size 3/32" [2.3mm]
- Replace "X" with any alpha/numeric character required
- Character style 2A
- Engraving depth .020" [.5mm]
- W-1 Tool Steel
- Heat Treated to 57-60 Rc
- Acc Coating for Long Life. CMT Exclusive

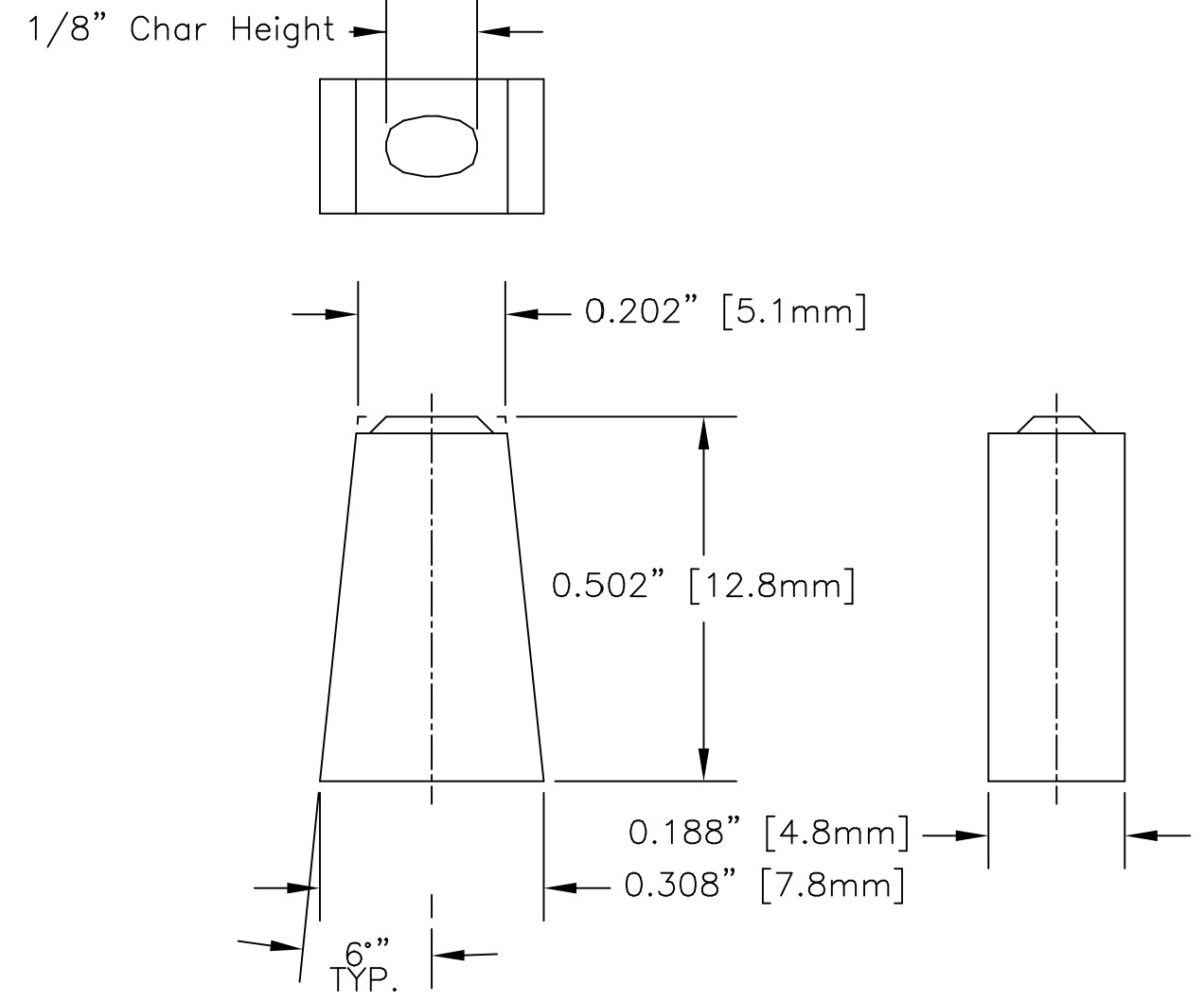

Part #CMM180-X
- Character Size 1/8" [3.2mm]
- Replace "X" with any alpha/numeric character required
- Character style 2A
- Engraving depth .020" [.5mm]
- W-1 Tool Steel
- Heat Treated to 57-60 Rc
- Acc Coating for Long Life. CMT Exclusive

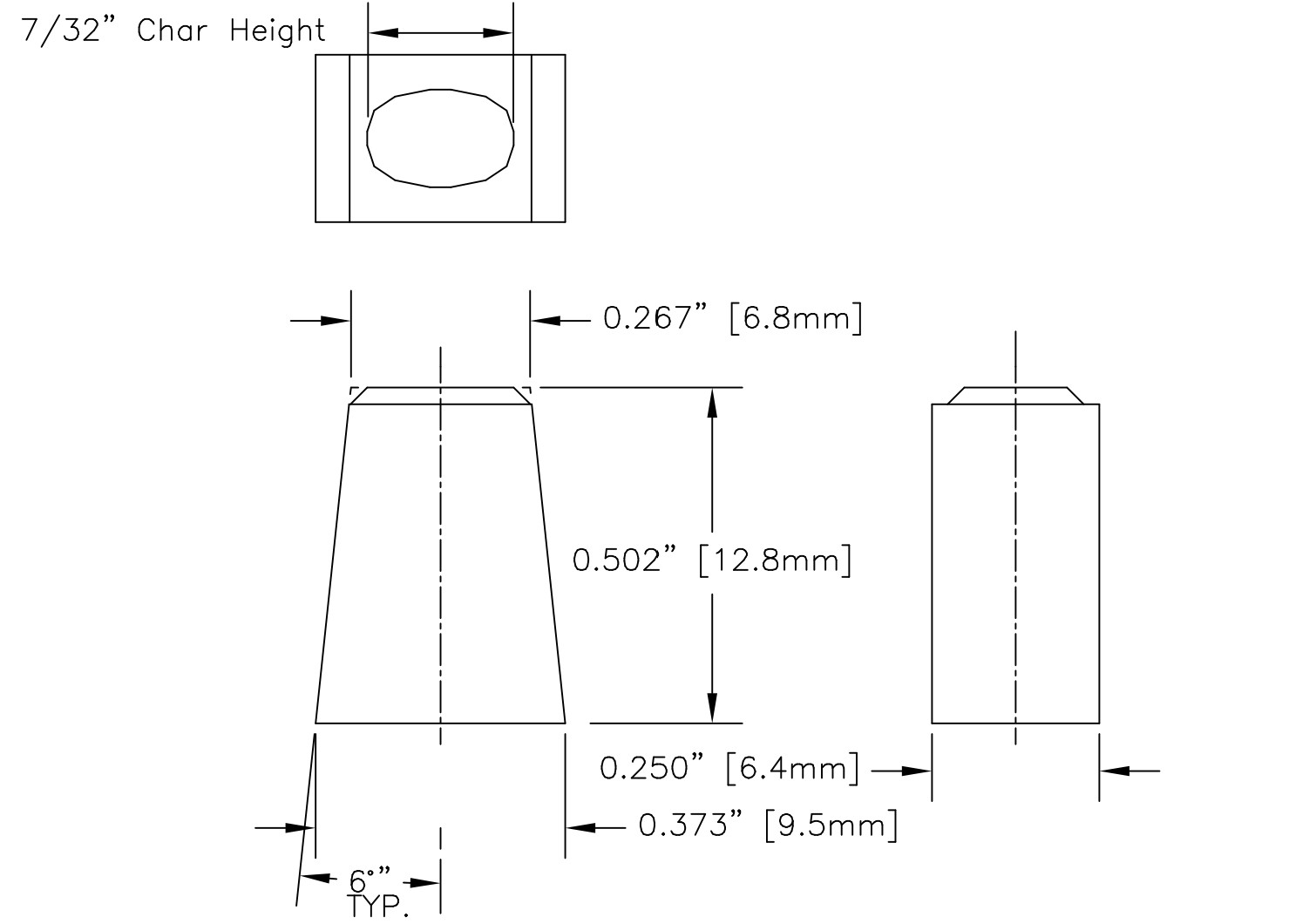

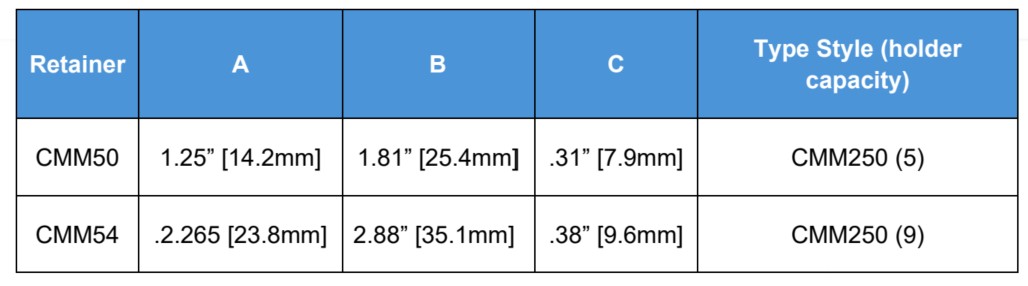

Part #CMM250-X
- Character Size 7/32" [5mm]
- Replace "X" with any alpha/numeric character required
- Character style 2A
- Engraving depth .025" [.6mm]
- W-1 Tool Steel
- Heat Treated to 57-60 Rc
- Acc Coating for Long Life. CMT Exclusive

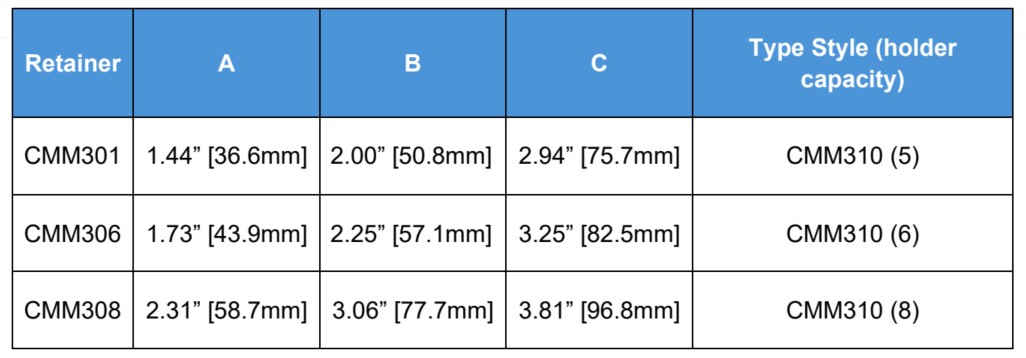

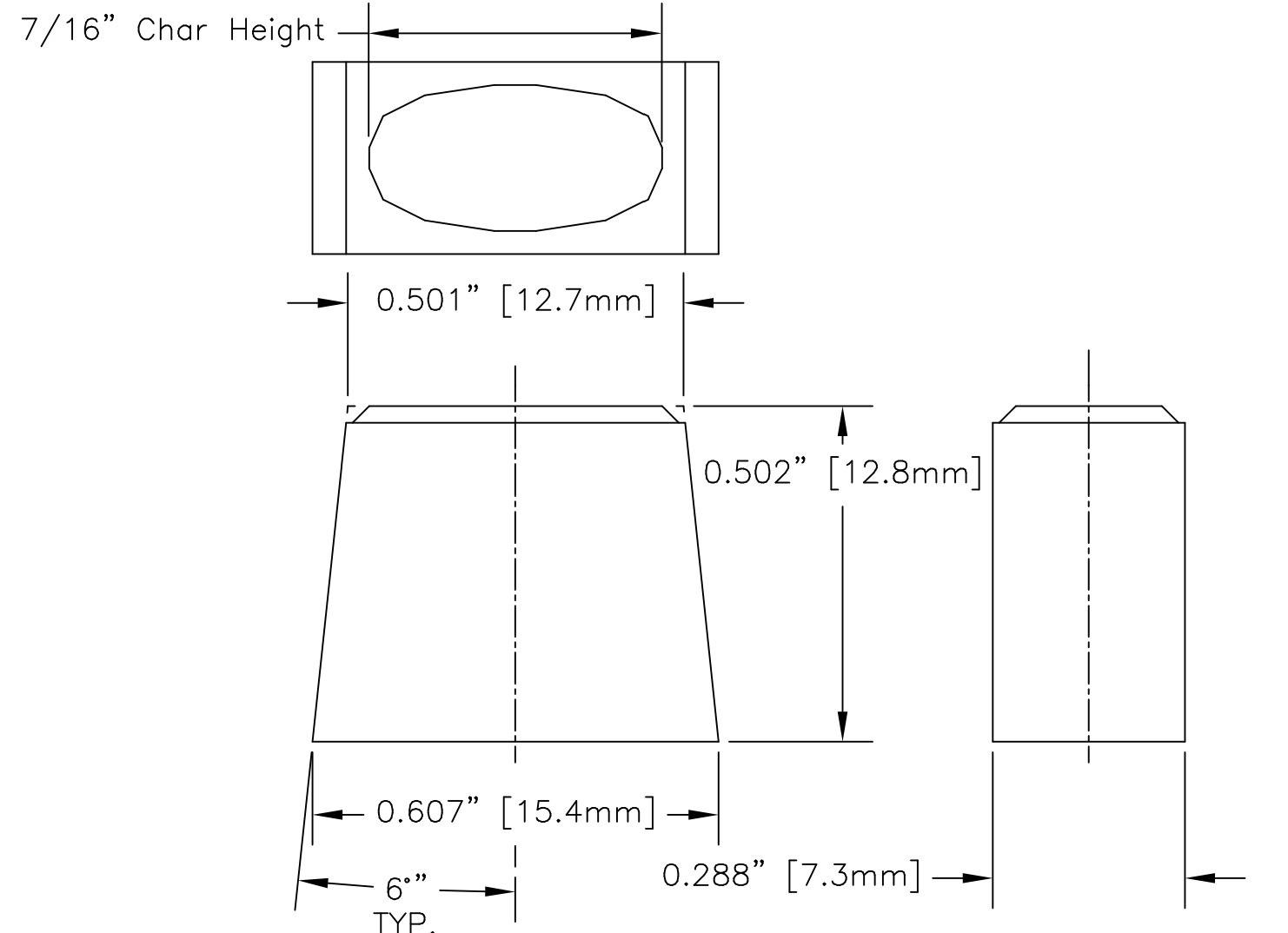

Part #CMM310-X
- Character Size 7/16" [11m]
- Replace "X" with any alpha/numeric character required
- Character style 2A
- Engraving depth .025" [.6mm]
- W-1 Tool Steel
- Heat Treated to 57-60 Rc
- Acc Coating for Long Life. CMT Exclusive
