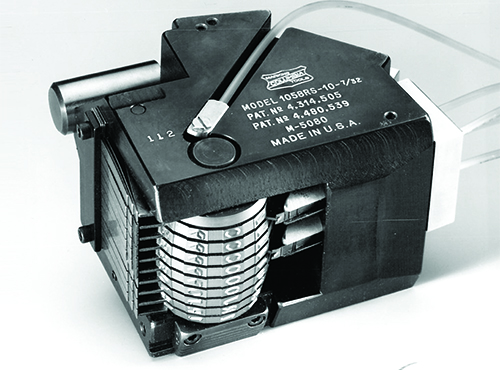

Columbia Marking Tools' models 1023 and 1058 numbering heads are purpose-built for specialized applications, offering unmatched precision and efficiency in marking electronically generated alphanumeric random sequences.

These cutting-edge numbering heads are designed with remote selectivity, allowing seamless integration with computer systems for fully customizable and controlled marking operations. Each wheel is individually actuated, enabling unparalleled flexibility in creating dynamic and unique markings essential for industries focused on traceability, serialization, and part identification.

Engineered for rugged plant environments, these machines boast exceptional durability and reliability, ensuring consistent, high-quality performance in even the most demanding industrial conditions. With innovative features and robust construction, models 1023 and 1058 set the standard for advanced metal marking solutions in modern manufacturing.

Envelope Dimensions provided with proposal, and CAD data provided with placement of an order.

Manual Numbering Head by Columbia Marking Tools

Random Numbering Heads

Technical guide to Model 1023RS & 1058RS

Technical Data Sheet

Three Key Elements

1. Individual Wheel actuation

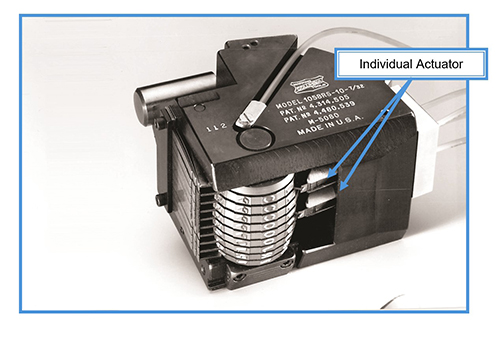

The remote-select numbering head provides complete control over the marking legend, with each wheel designed to feature a separate and unique actuator. This innovative configuration allows for precise, independent operation of each wheel, enabling effortless customization of alphanumeric sequences.

Individual Actuators

Verification Circuit

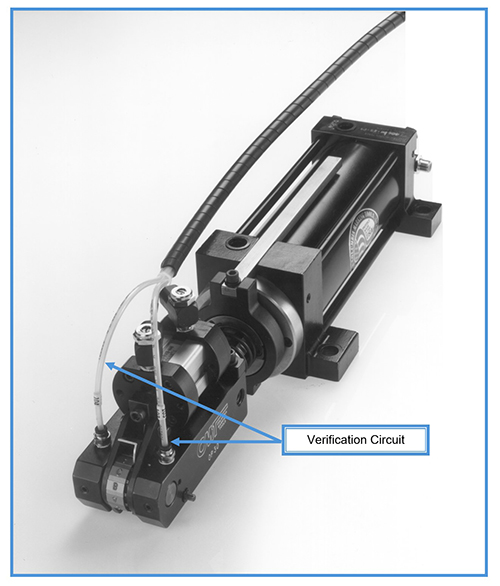

2. Verification Circuit

To ensure marking accuracy, Columbia Marking Tools' Random numbering heads come standard with a built-in verification circuit. This innovative air-pressure circuit allows the tooling to complete a cycle back to the "0" home position as frequently as required.

This feature provides dependable marking verification, ensuring precision and consistency across production runs. It’s an essential component for applications where accuracy and traceability are paramount.

3. Air control Module

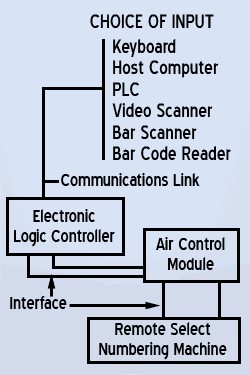

The PLC serves as the primary communication hub for Columbia Marking Tools' Random numbering heads, ensuring seamless control and integration. Complementing this system, the Air Logic control module houses all the necessary air valves to manage the actuator's operation and, if required, the air impact marker.

Individual Actuators

Custom Designed

Selections required for Random numbering head

Mounting Style

K Style -Ball Lock mount for K style Rod on CMT Air Impact Markers
Dovetail mount – please provide length across dovetail, or machine model this tool will be used in
Flat top mount with tapped holes. CMT can provide the recommended design during the approval process.

Character Size

Metric or Inches for each characters
Remember it is easy to overestimate character size

Number of Wheels

Number of wheels in the numbering head - random and manually indexed
The tooling design may containa suffix or prefix type holders

Wheel Readings

The standard, and most common, readings are figures 0 through 9.
The wheels may be designed with 10,12, or 14 station wheels.
Each station is engraved with character. They may be different or the same (repeated).

751-123

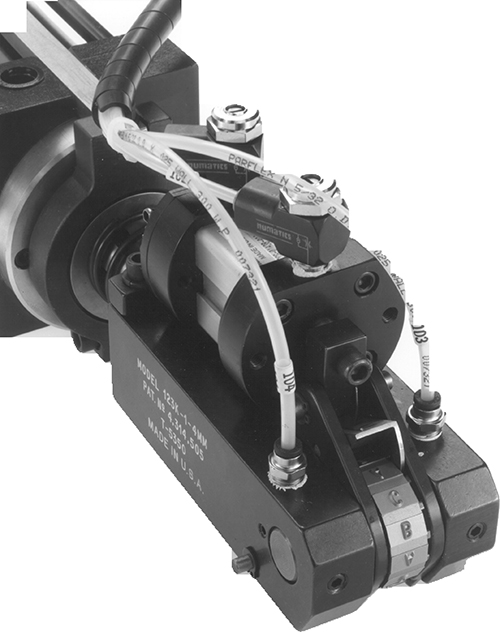

Random Station ID - Solved with Slide-A-Mark and 1023 Random Select Numbering Head

Technical Specifications

Model 123H Columbia Marking Tools Numbering Head

Solid Frame - designed and manufactured to fit wheel in customer configuration.
Extra wide CMT proprietary cam design.
Large shaft design to meet extra marking force for indention marking.
CMT patented pawl design – to allow for easy setup in either direction.

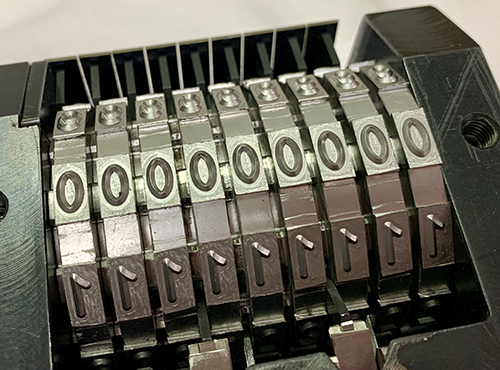

Double pass engraved (NOT EDM)
Wheels made of W-1 Tool Steel
Wheels engraved with 45 Degree engraving angle
Wheels engraved with Sharp face character
Wheels have Gothic standard (San Serif) font for quick easy reading
Extra wide CMT proprietary cam design
