Embossing
Embossing marking makes a BOLD statement
The Complete reference for industrial embossing marking.
Impressive Embossing

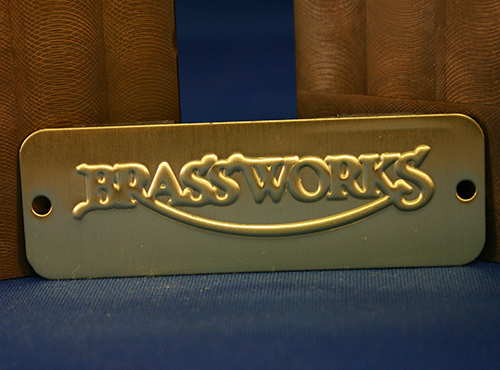

Embossing does more than mark a part. Embossing makes a bold statement.
Embossing of metal parts coveys both a quality of the part and a permanence. Embossing in general, enhances the original image and or designs, making it appear richer, more expensive, more eye catching, more appealing, and so forth. Embossing and good design can make even the most basic product become a piece of art. However, the appearance of the embossed image is very dependent on the quality of printing and embossing. Poor quality embossing can destroy the appeal of the product. However, good quality embossing can make product positively breathtaking.
Raised round face characters or designed produced on sheet metal having a thickness of 1/8” the character or less.

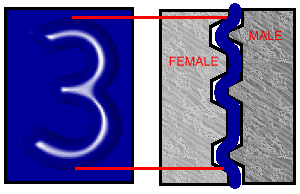

The example to the right shows the final embossed mark, a raised three on the left-hand side.

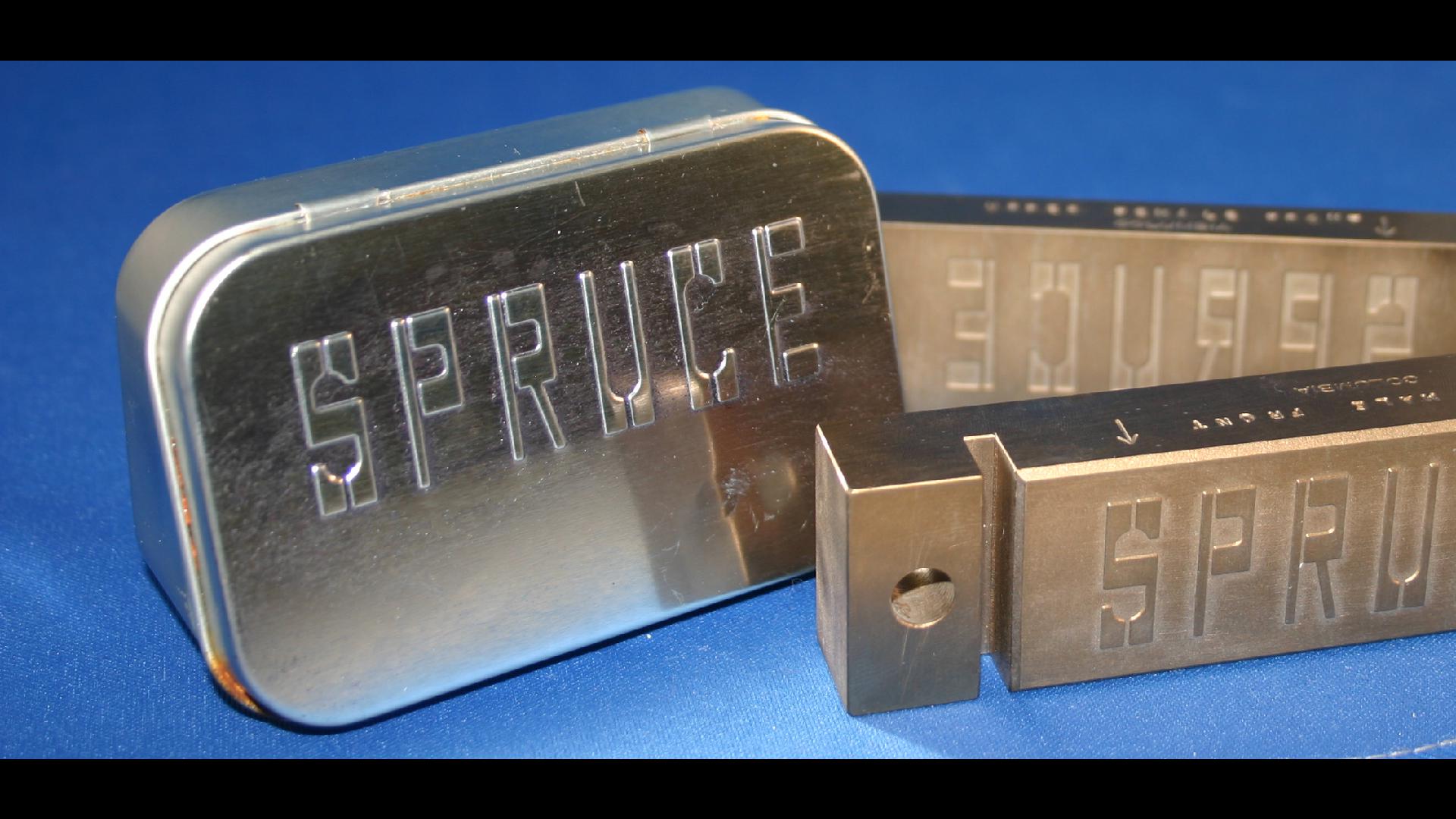

The right-hand side shows the two dies required to make the mark: a female die for the top of the part, and a male die under the part.
Produces raised characters or designs on the sheet metal having a thickness exceeding 1/8” the character height. Finished effect is comparable to coining.

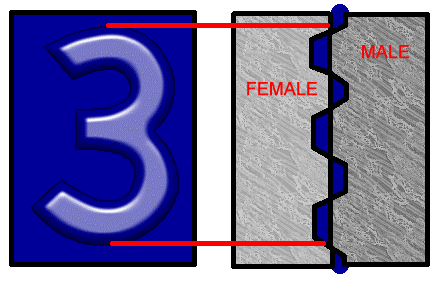

The example to the left shows the final embossed mark, a raised three on the left-hand side.
The right-hand side shows the two dies required to make the mark: a female die for the top of the part, and a male die under the part.

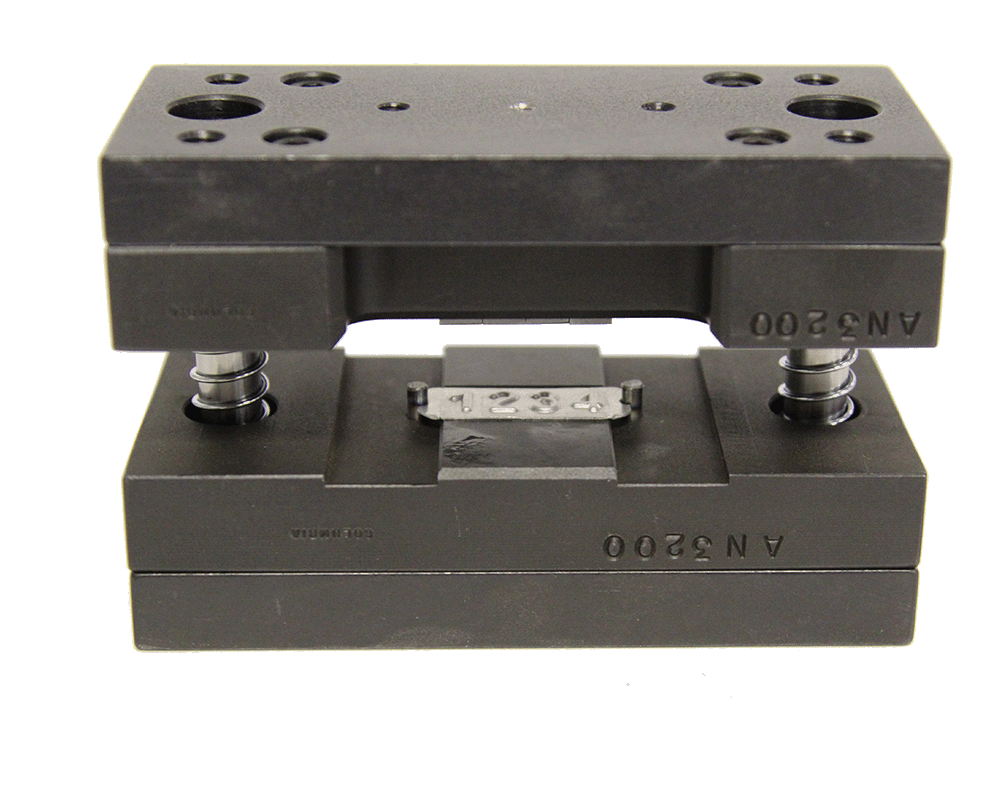

Embossing Die Set
Sheet material is pressed in a die shoe between an embossing die pair. The sheet material may be made of any malleable substrate including (but not limited to): metal, paper, plastic, leather. The embossing die pair consists of one male and one female die. The die pair is perfectly positioned using a die shoe. The die shoe has an upper holder and lower holder attached by one or more locating pins. The pins assure that the male and female dies will intersect perfectly during the marking/pressing process. The locating pins must be designed to be larger than the marking piece.
Components required for sucessful Embossing application:
A well-designed tooling setup for embossing will provide the clear formed characters that will last for the duration of the material.
