R800 Standard CNC Automatic Roll Attachment

R800 Standard CNC Automatic Roll Attachment

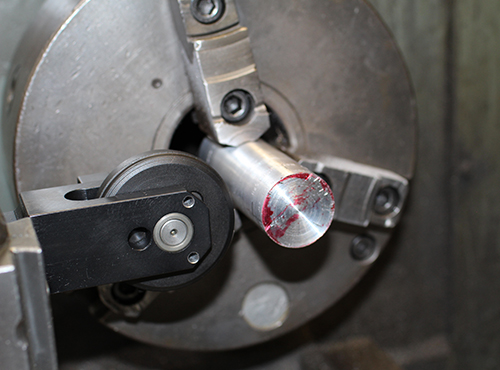

The roll type attachments are used as interchangeable tooling in CNC lathe operations. The marking dies indent the OD of the material to provide the identification required. The standard R800 roll type attachment standard with options for mounting style, rotation, and marking dies or type.

Roll Type Holder
Roll Type Holder

Columbia Marking Tools Standard Roll Type Attachment

Industrial tooling for integration of roll marking in CNC lathe machinery

R800 Technical Data Sheet

R800 Information

R800 Drawing

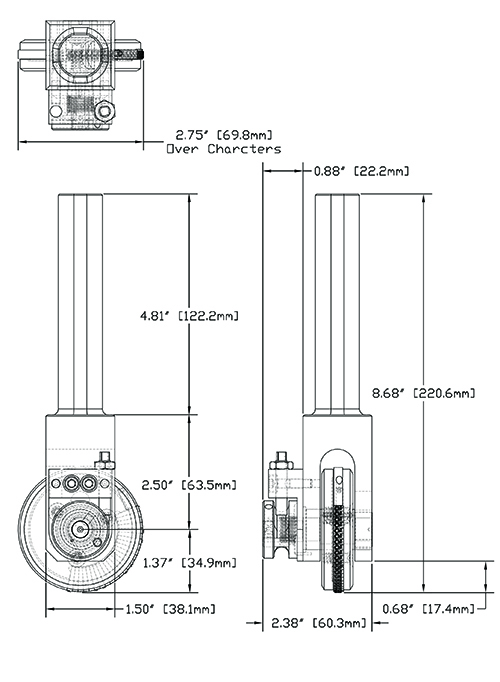

R800 Dimensions
Information

Notes

  • Normal setup is for clockwise rotation and uses LH wound spring (det 9). Counterclockwise ration would use RH wound spring (det 9RH) and move adjusting screw to opposite size.
  • Shank size and shape is per specified size on part order charts.
  • Roll type holder or Roll Die sold separately.

R800 How to Order

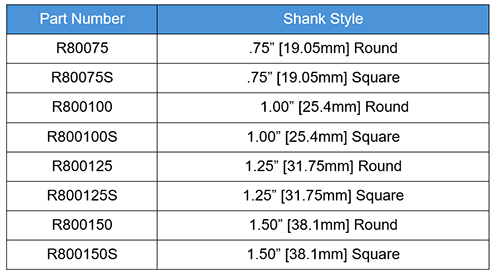

R800 CNC Roll Marking Attachment How to Order
Quote Request

Select:

  • Shank Style
  • Rotation Direction - standard is LH or clockwise rotation. Unit is setup with this spring, but RH is shipped with package
  • Roll die or roll type holder for marking tooling
    •

    Accessories and Required Tooling

    RS500 Roll Type Holder

    Interchangeable roll type holder for flexible marking legends.

    Learn More

    R500RD Roll Die

    Solid roll die for static marking legends and logos.

    Learn More

    Spare parts

    Replacement spring, bearing, wooduf key, and jam nuts.

    Learn More
