Industrial Standard

The industial standard bottoming markers are perfect for simple part tracking information. These could be a shift code, QC mark, or station ID. The addition of this part tracking will provide invaluable details for any production improvement projects.

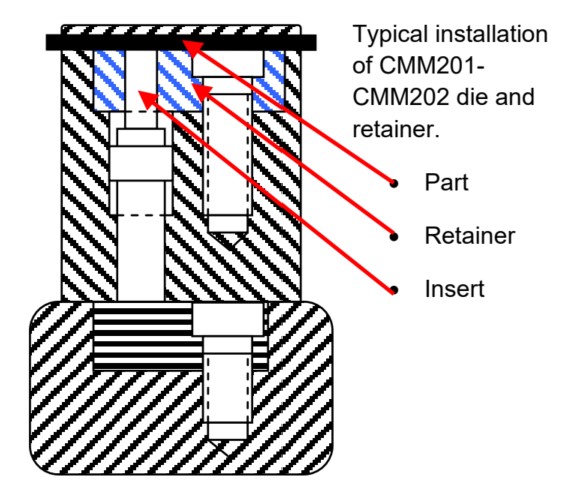

  • Mounted Style - CMM201/202
  • Threaded Style - CMM104/105 - available in either imperial or metric

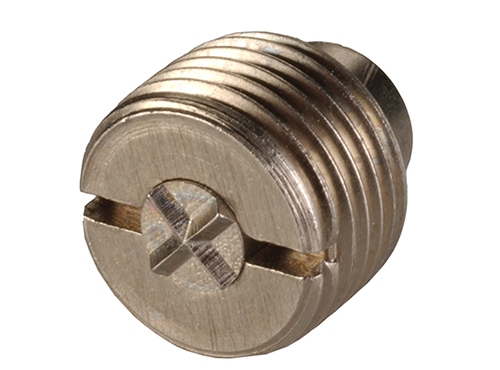

Columbia Marking Tools Bottoming Markers

Data Sheets for Bottoming Markers.

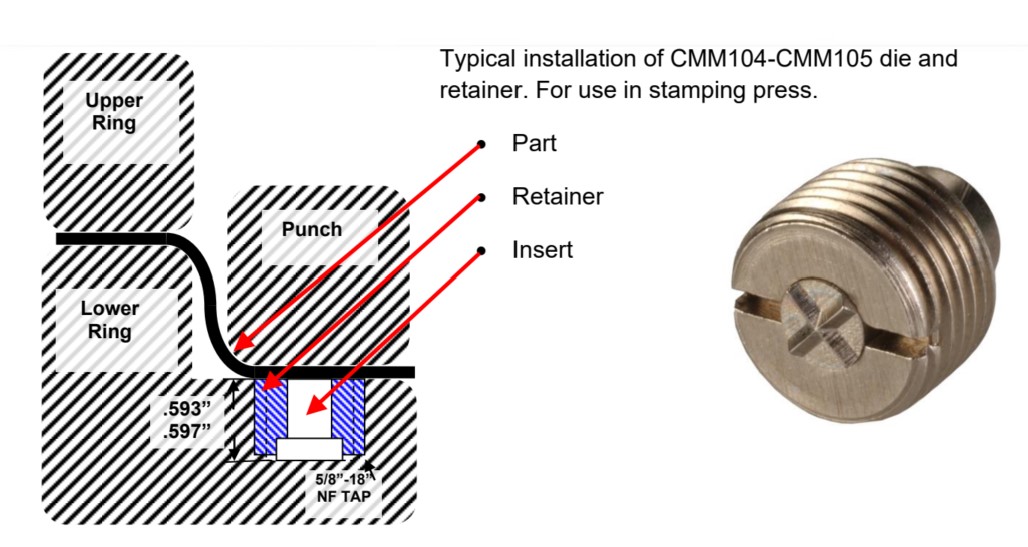

Retainer Part #CMM104

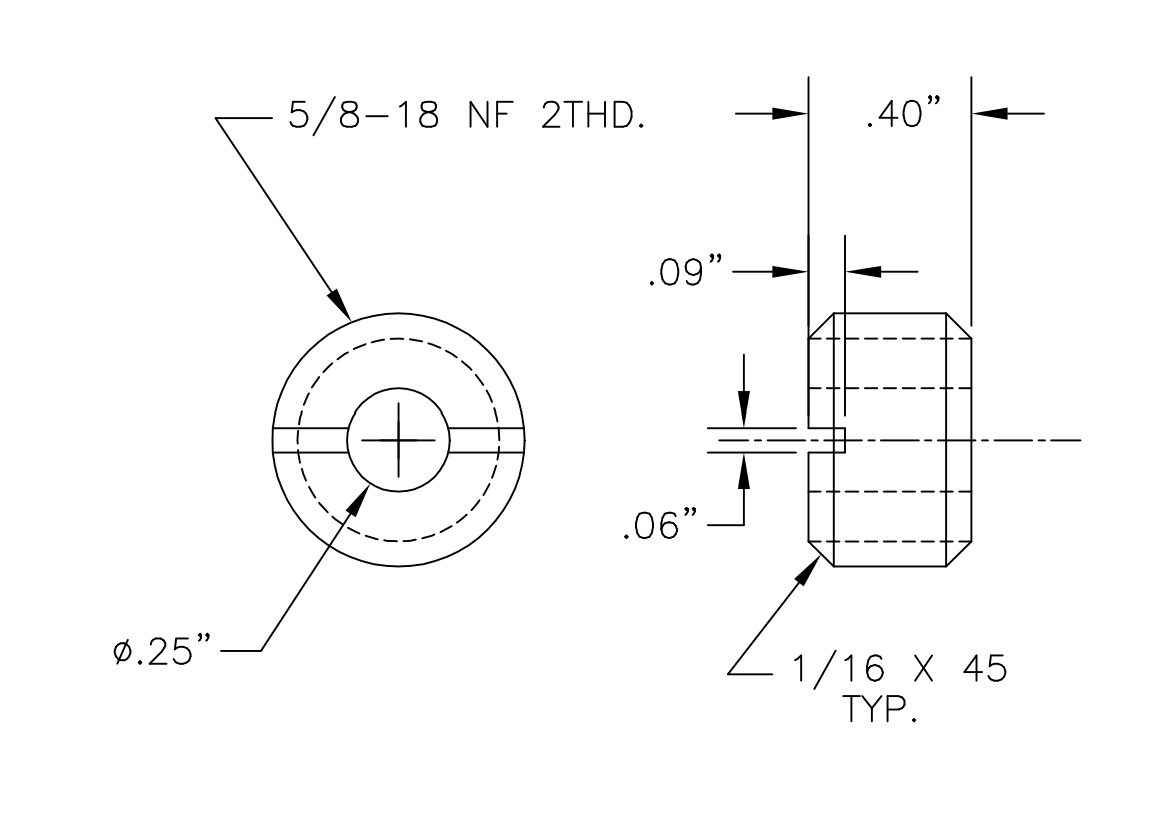

CMM104 Dimensions

Stamp Part #CMM105-X, where "X" is the alpha/nmeric character required

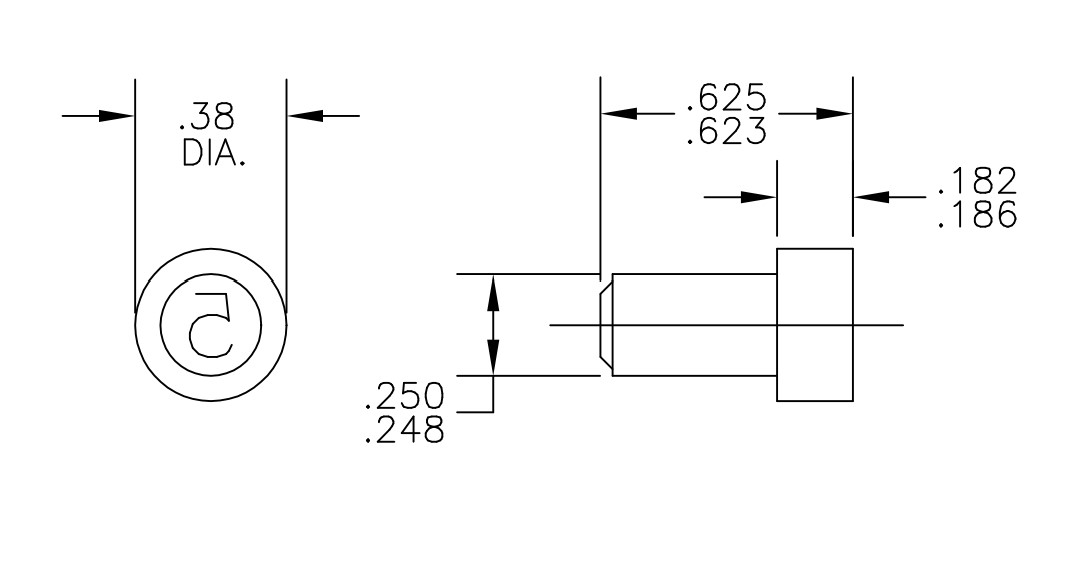

CMM105 Dimensions

Retainer Part #CMM104MM (shown on the left)

Stamp Part #CMM105MM-X, where "X" is the alpha/nmeric character required (shown on the right)

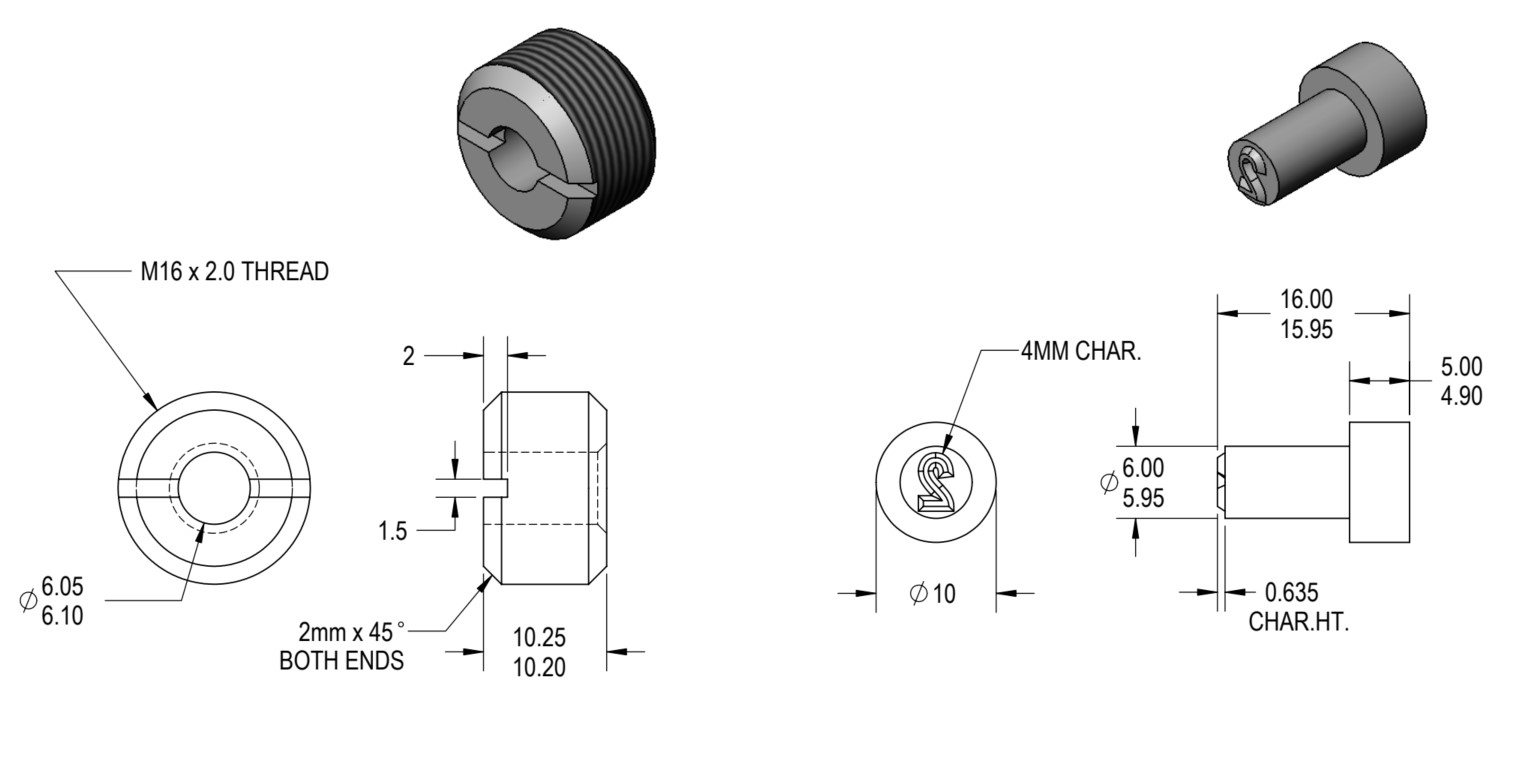

CMM104 Metric

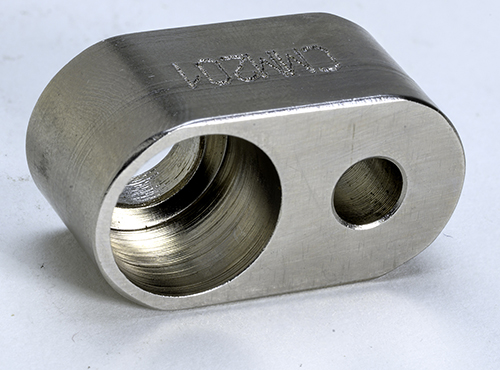

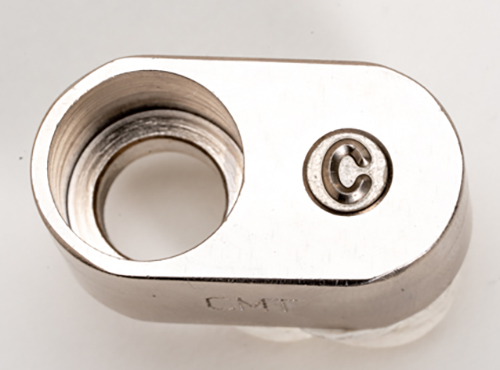

Retainer Part #CMM201

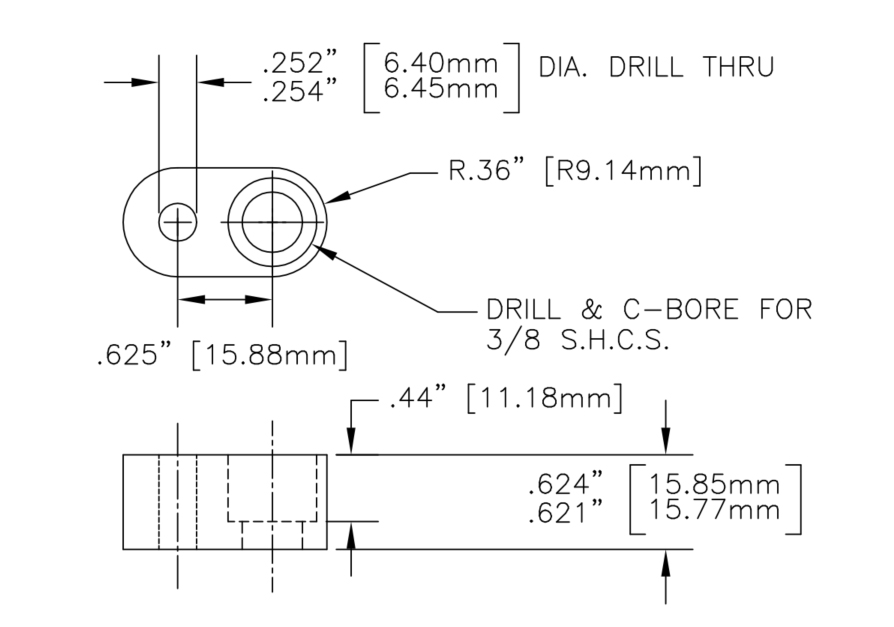

CMM201 Dimensions

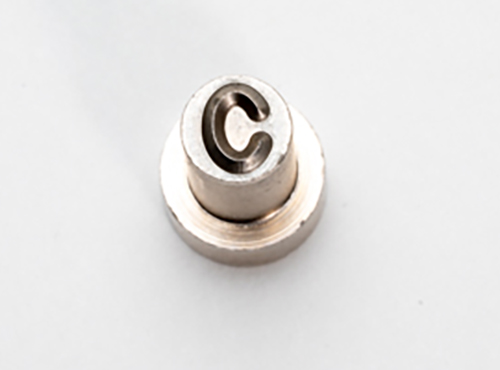

Stamp Part #CMM202-X, Where "X" is any alph/numeric character

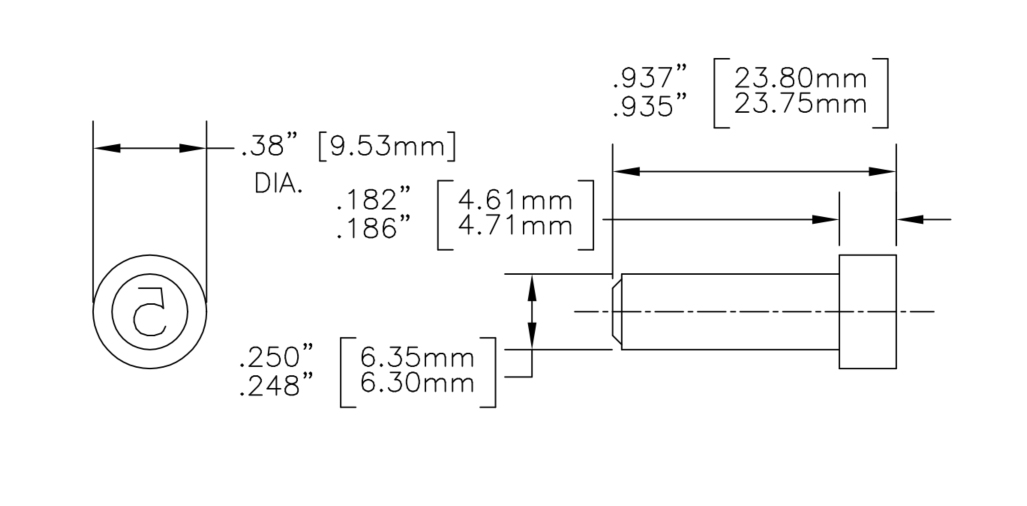

CMM202 Dimensions
