CNC RS500 Roll Holder and Type
RS500 CNC Roll Type Holders
Interchangeable type offers flexible and variable marking legends. Columbia Marking Tools roll type holders, developed to efficiently mark both flat and contoured surfaces, are designed to hold individual step style wedge type or combinations of wedge type, logo-type, and segment dies.

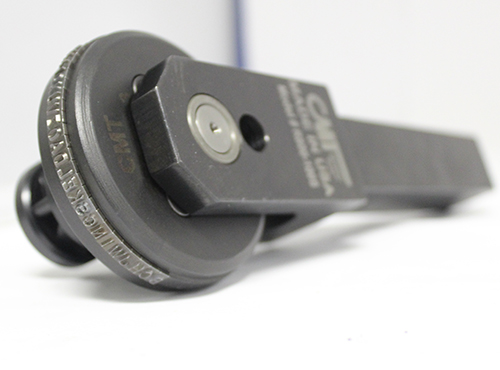

Columbia Marking Tools CNC Roll Type Holder
Industrial tooling for integration of roll marking in CNC lathe machinery
May be used in either the R900 or the R800 CNC Automated Roll Marking Attachments.

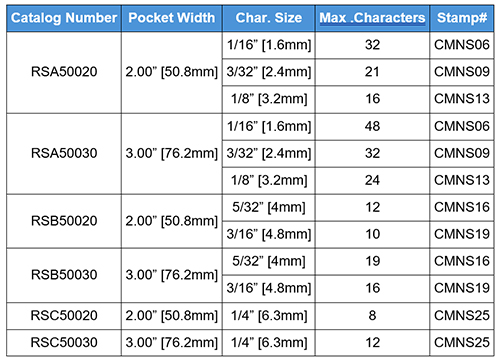

1 Line Roll Type Holder:
For use in RS500 CNC roll type holders.
What makes Columbia Marking Tools different
- Quality materials
- Double pass engraving
- Superior heat treating

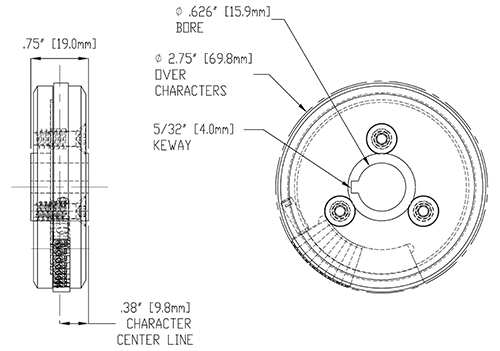

Technical Specifications:

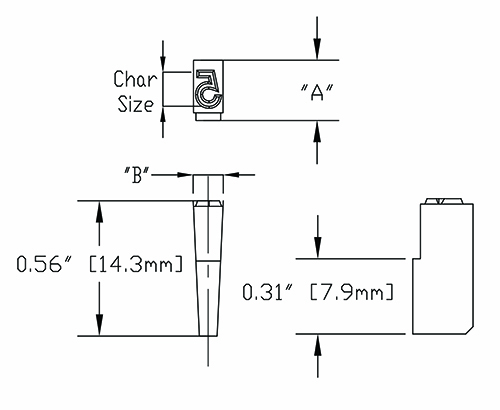

- A =
- Width
- B =
- Height
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:

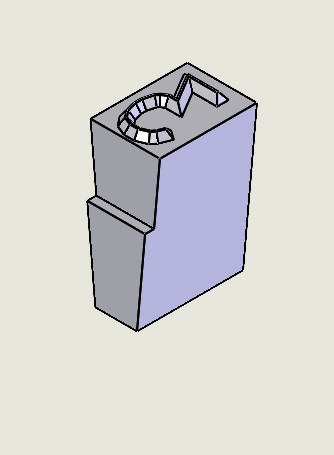

Standard CMNS Flat Stamps are engraved as sharp face characters. This type of face style is engraved with a sharp edge. A sharp face tool penetrates more easily than other styles.

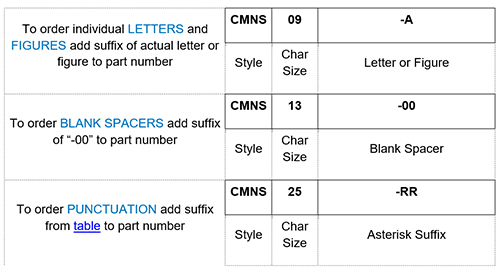

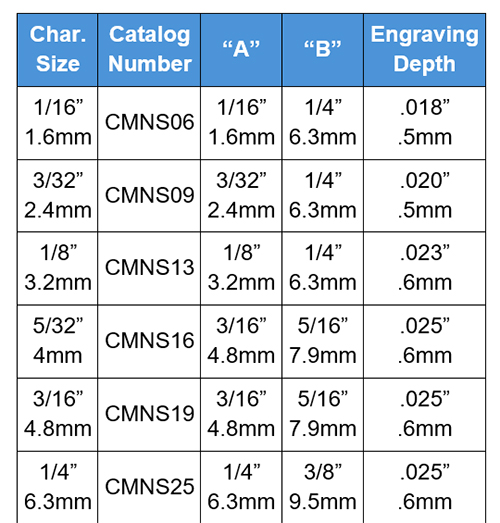

Build Catalog Number as shown:
Dot Style Characters are engraved with a series of conical dots for the lowest possible stress when marking. Recommended for high pressure fittings, aircraft, and other parts where sharp tools might disrupt the molecular structure of the metal.
Benefits of multi-character dies:
- MA =
- Width is determined by the number of character and spaces. Multiple the standard width of A by the total number of character and spaces.
- B =
- Height
- Character Size =
- Measured from the tip of the character
- Character Width =
- Style 2A, width is 50% of the character size
Technical Specifications:
SCMNS Multi-character Wedge Stamps are engraved as sharp face characters. This type of face style is engraved with a sharp edge. A sharp face tool penetrates more easily than other styles.

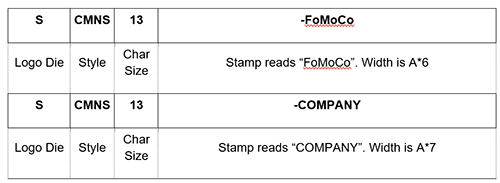

Build Catalog Number as shown:

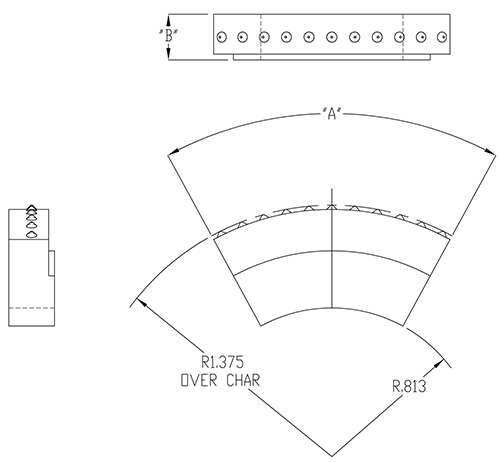

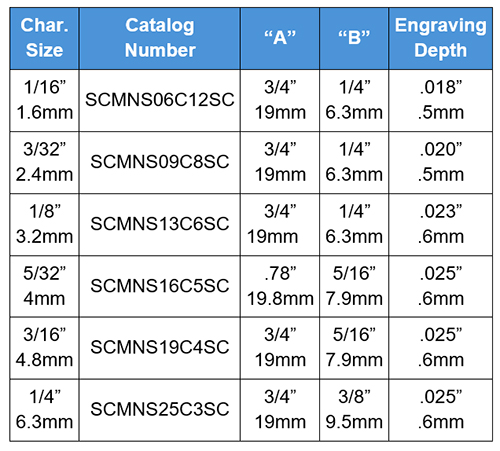

A starting cam may be required for some CNC roll marking operations. The purpose of the starting cam is to provide a “ramp” into the marking legend and extend the life of the marking dies. The carry dots take the first impact of the marking legend. CMT suggests about a 3/4” [19mm] length for the starting cam. Longer and shorter length are available.
EXAMPLE - SCMNSAACBSC:
