R900 Outside Die Mount CNC Automatic Roll Attachment

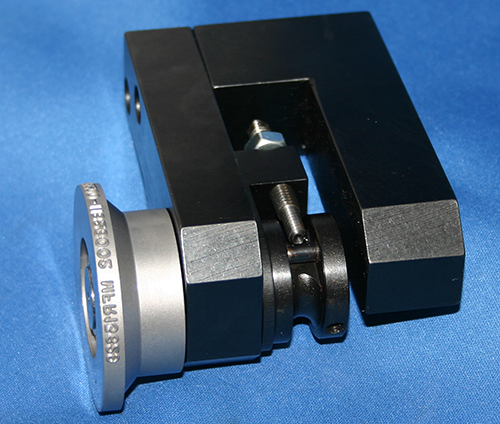

The R900 outer die mount automatic roll marking attachment is best for marking as close to the collet as possible. The roll type attachments are used as interchangeable tooling in CNC lathe operations. The marking dies indent the OD of the material to provide the identification required. The R900 outside die mount roll type attachment with options for mounting style, rotation, and marking dies or type.

Roll Type Holder
Roll Type Holder

Columbia Marking Tools Outside Die Mount Roll Type Attachment

Industrial tooling for integration of roll marking in CNC lathe machinery

R900 Technical Data Sheet

R900 Information

R900 Drawing

R900 Dimensions
Information

Notes

  • Normal setup is for clockwise rotation and uses LH wound spring (det 5). Counterclockwise ration would use RH wound spring (det 9RH) and move adjusting screw to opposite size.
  • Selection of shank dimensions: ½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”
  • Roll type holder, Standard Roll Die, or R900 Roll Die sold separately.

R900 How to Order

R900 CNC Roll Marking Attachment How to Order
Quote Request

Select:

  • Shank Style
  • Rotation Direction - standard is LH or clockwise rotation. Unit is setup with this spring, but RH is shipped with package
  • Roll die or roll type holder for marking tooling
    •

    Accessories and Required Tooling

    RS500 Roll Type Holder

    Interchangeable roll type holder for flexible marking legends.

    Learn More

    R500RD Roll Die

    Solid roll die for static marking legends and logos.

    Learn More

    R900RD Roll Die

    Marking Close to the collet or in part recess.

    Learn More

    Spare parts

    Replacement spring, bearing, wooduf key, and jam nuts.

    Learn More
