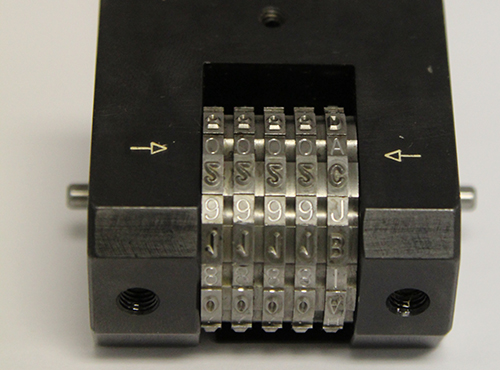

The CMT manual numbering head offers a significant upgrade over traditional individual steel type for indention marking. Featuring solid engraved wheels, this advanced system eliminates the need for frequent tooling changes when updating marking legends. The wheels can be quickly rotated to the desired marking configuration, resulting in faster adjustments and reduced downtime. This improvement not only reduces tooling changeover costs but also increases overall production efficiency, making it a cost-effective and time-saving solution for precision marking.

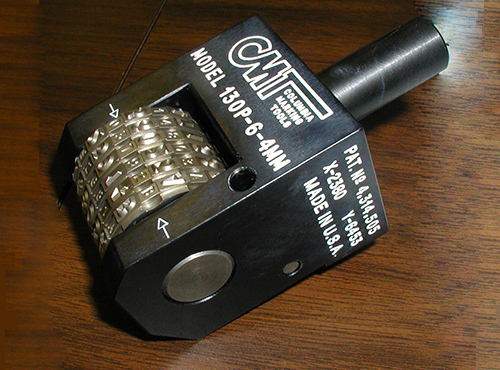

Manual Numbering Head by Columbia Marking Tools

Manual Numbering Heads

Technical guide to Model 130.

Technical Data Sheet

Custom Designed

Selections required for manual numbering head

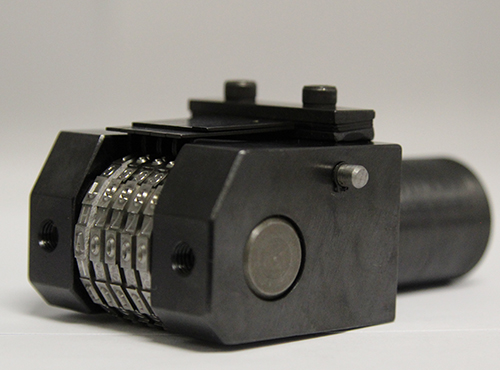

Mounting Style

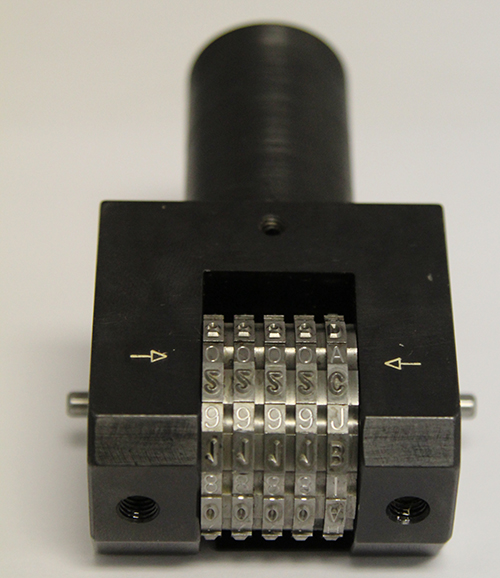

Press shank – size of the round or square shank and the length. Standard size is 1” diameter by 2” long
Dovetail mount – please provide length across dovetail, or machine model this tool will be used in
Flat top mount with tapped holes. CMT can provide the recommended design during the approval process.

Character Size

Metric or Inches for each characters
Remember it is easy to overestimate character size

Number of WHeels

Number of wheels in the numbering head
The tooling design may containa suffix or prefix type holders

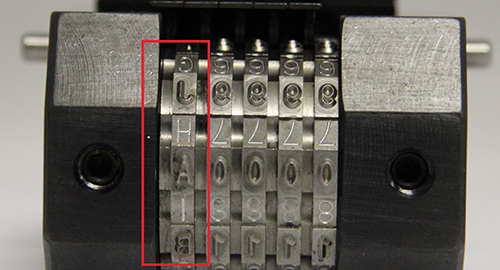

Wheel Readings

The standard, and most common, readings are figures 0 through 9.
The wheels may be designed with 10,12, or 14 station wheels.
Each station is engraved with character. They may be different or the same (repeated).
