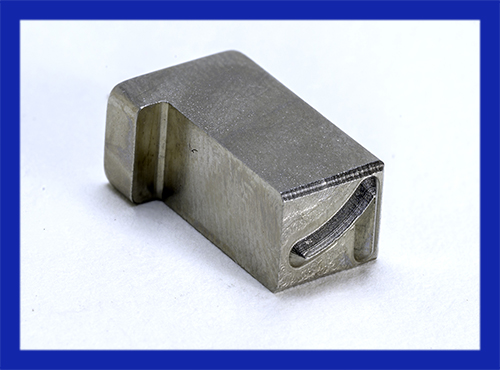

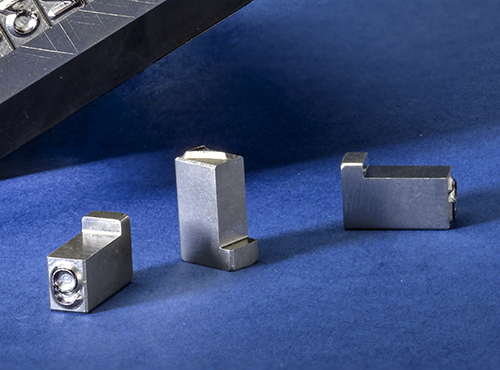

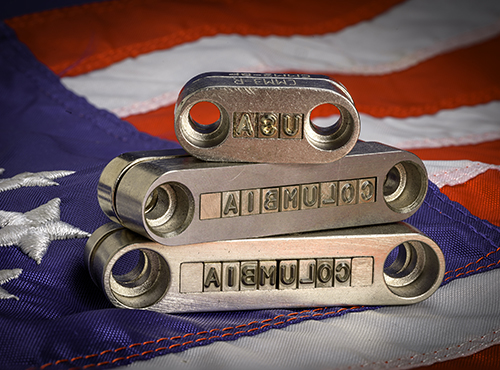

CMM L-Shaped Type and Retainers

Part Marking for Stamping Operations

The industial standard L-Shaped type and retainers are great for part numbering and part tracking information. This tool is used for part numbers, date and shift codes. The addition of part tracking will provide invaluable details for any production improvement projects.

  • Automotive standard
  • Factory Direct for price savings
CMM L-Shaped Type and Retainers
CMM L-Shaped Type and Retainers
CMM L-Shaped Type and Retainers
CMM L-Shaped Type and Retainers

Columbia Marking Tools L-Shaped Type & Retainers

Data Sheets for Stamping Operations.

Technical Data Sheet

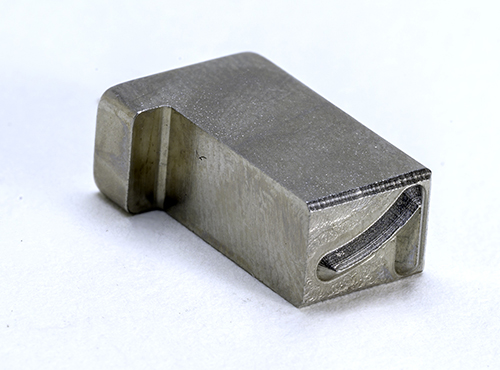

L-Shaped Type

CMM103 5/32" Character L-Shaped Type

Part #CMM103-X

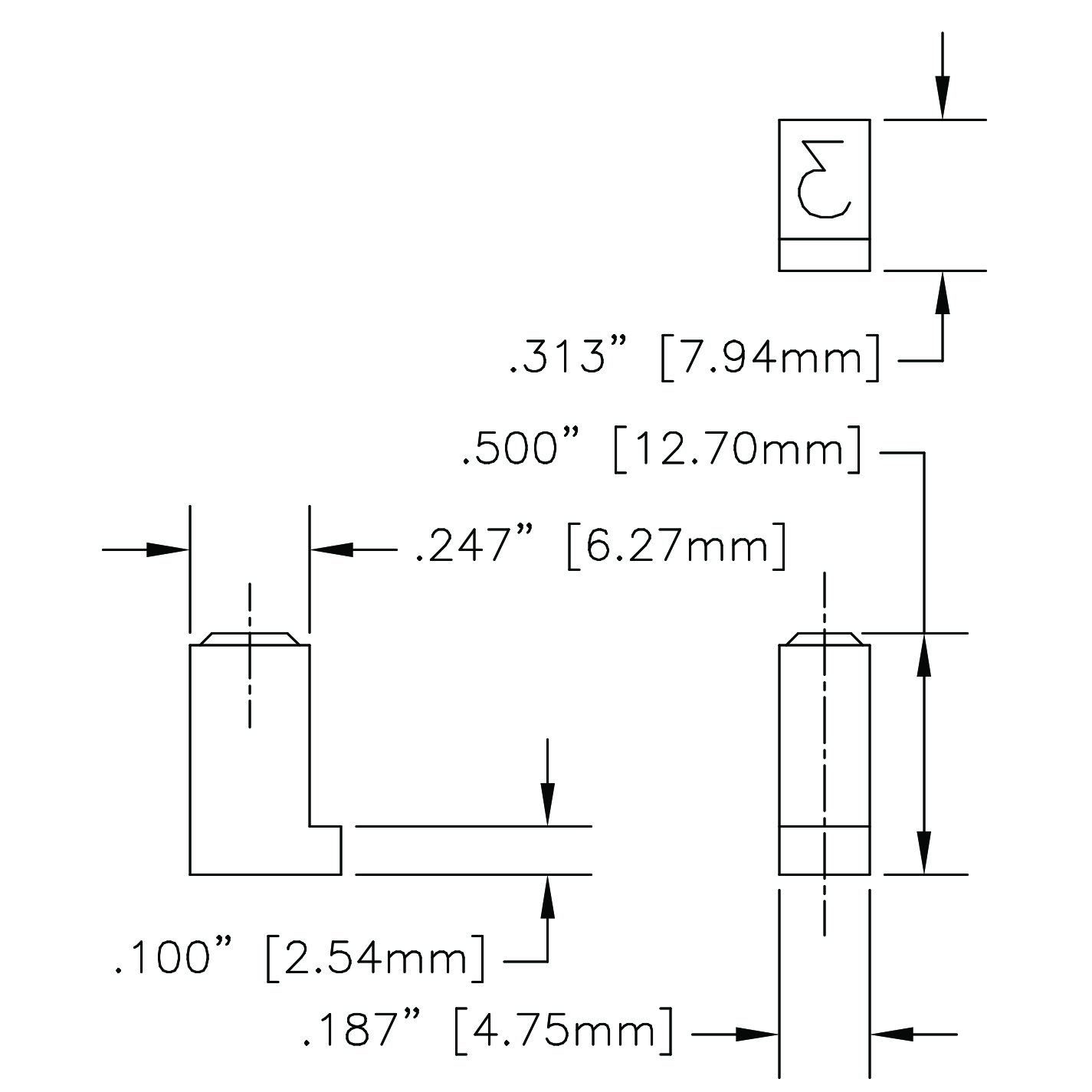

CMM103 Dimensions

CMM125 1/8" Character L-Shaped Type

Part #CMM125-X

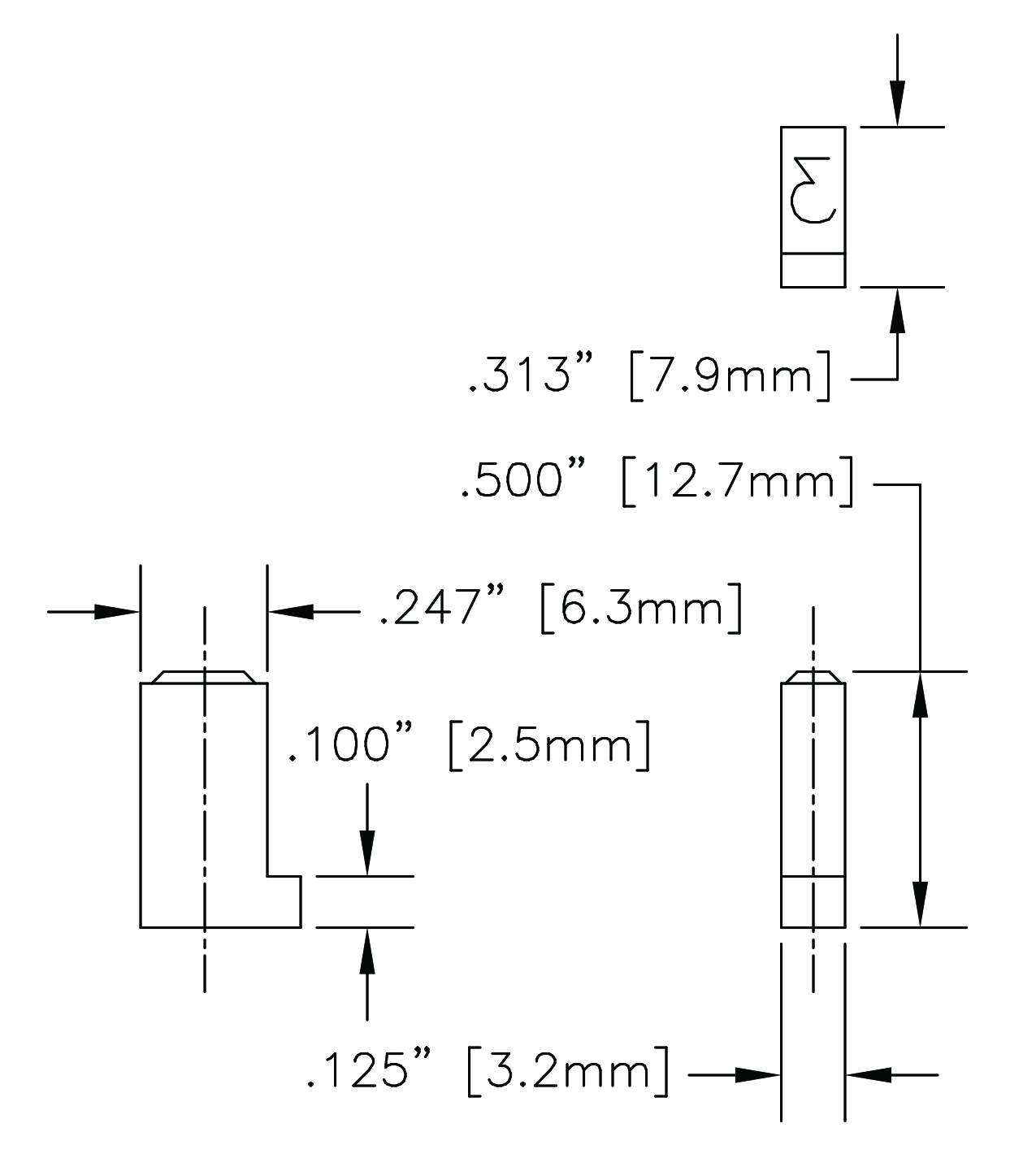

CMM125 Dimensions

CMM018 1/8" Character L-Shaped Type - Wide Blank

Part #CMM018-X

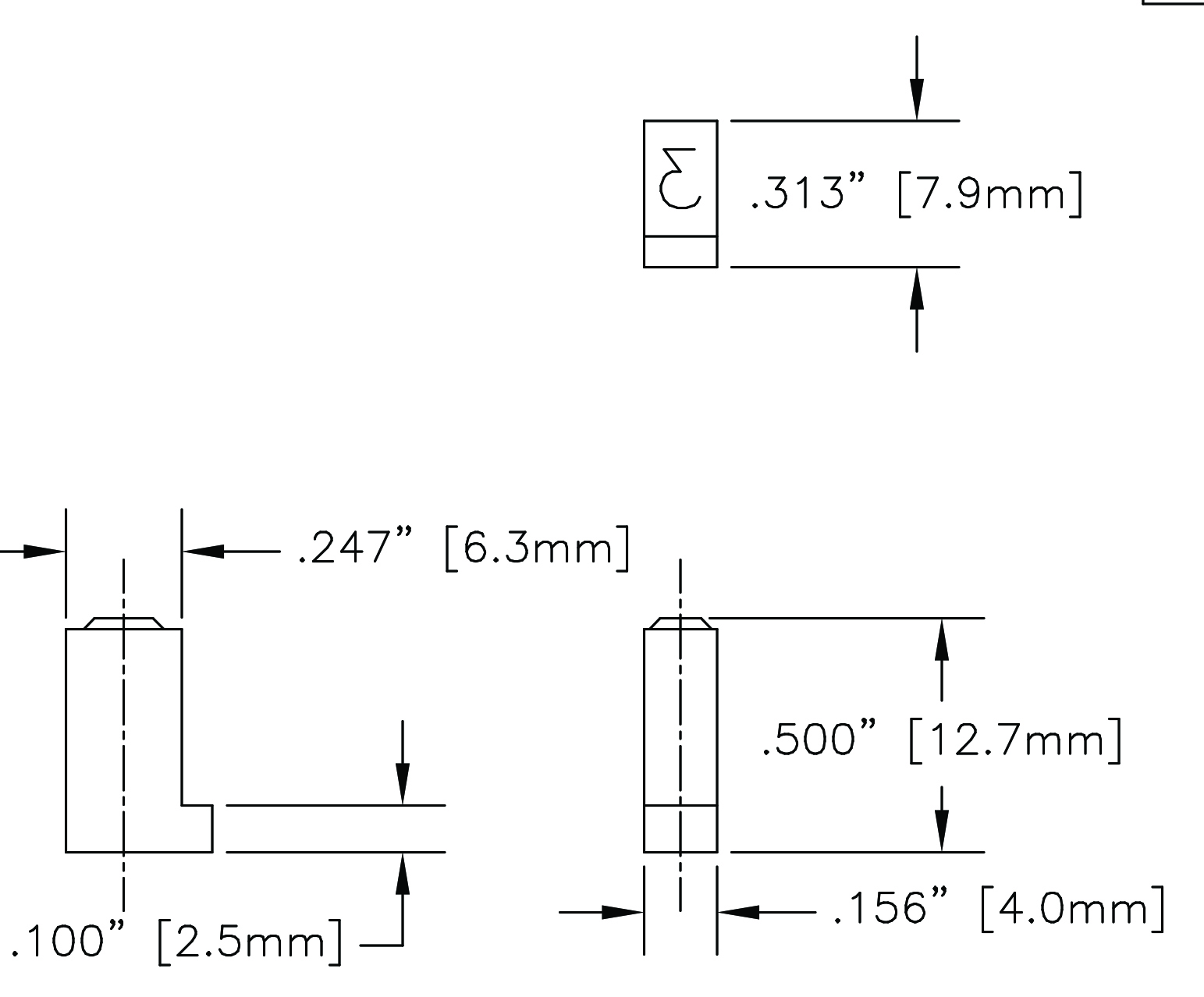

CMM018 Dimensions

CMM518 - 3/16" / CMM164 - 5/32" / CMM512 - 1/8" * Various Character Size on one L-Shaped Blank

Part #CMM518-X

Part #CMM164-X

Part #CMM512-X

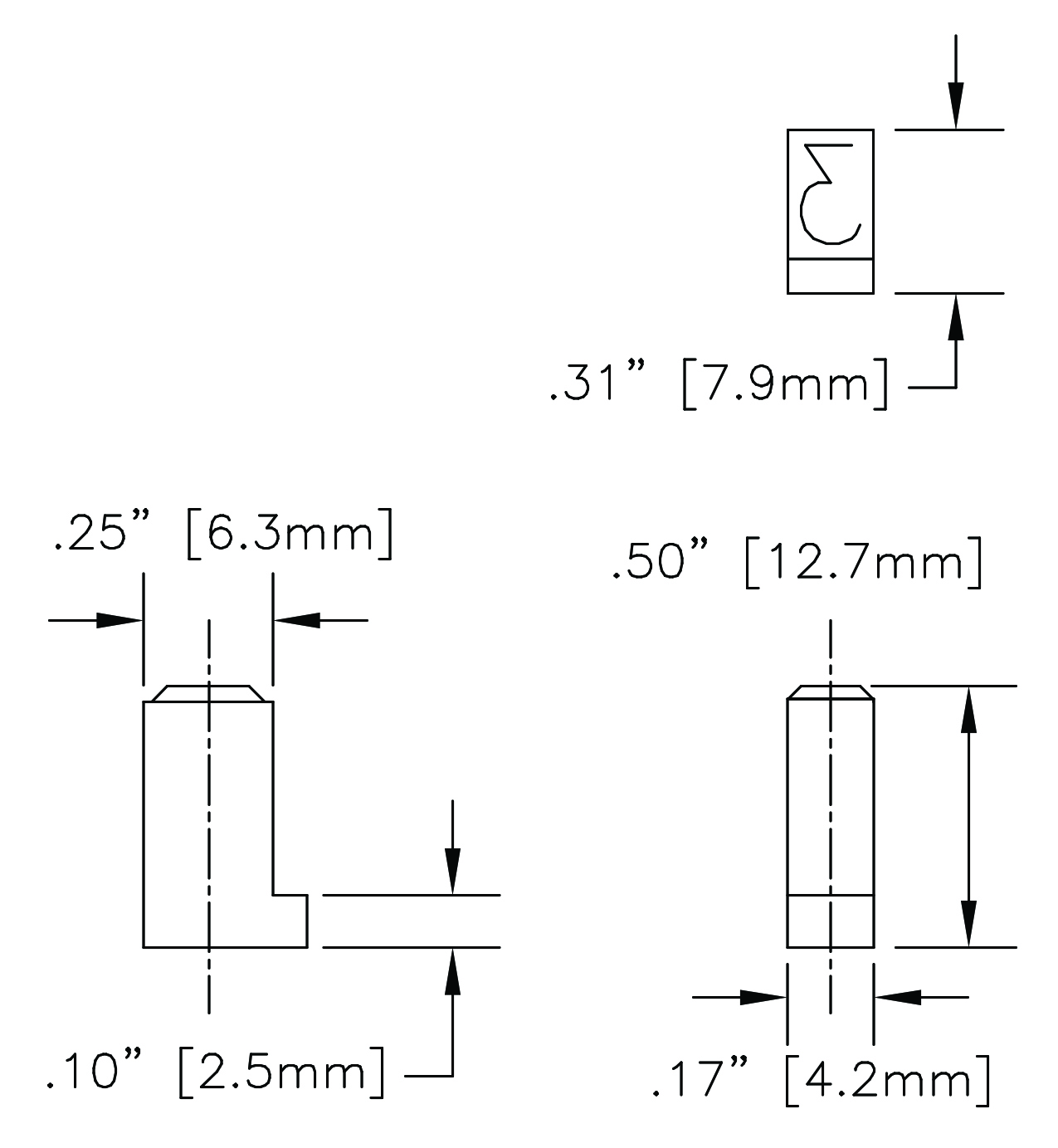

CMM518 Dimensions

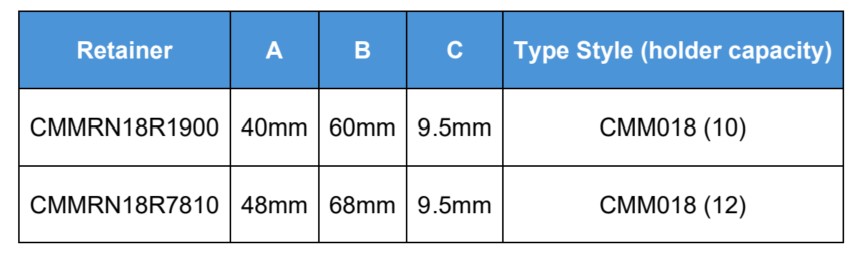

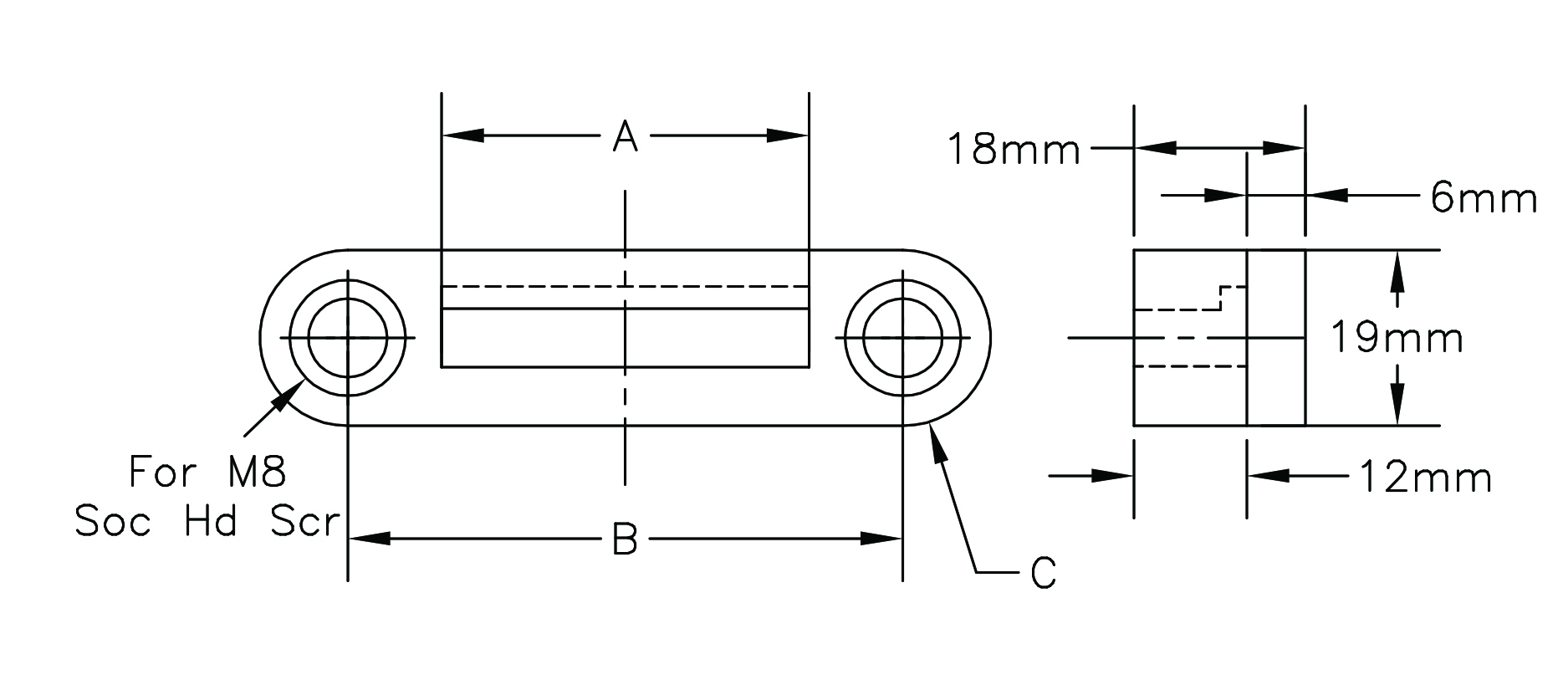

L-Shaped Retainer METRIC

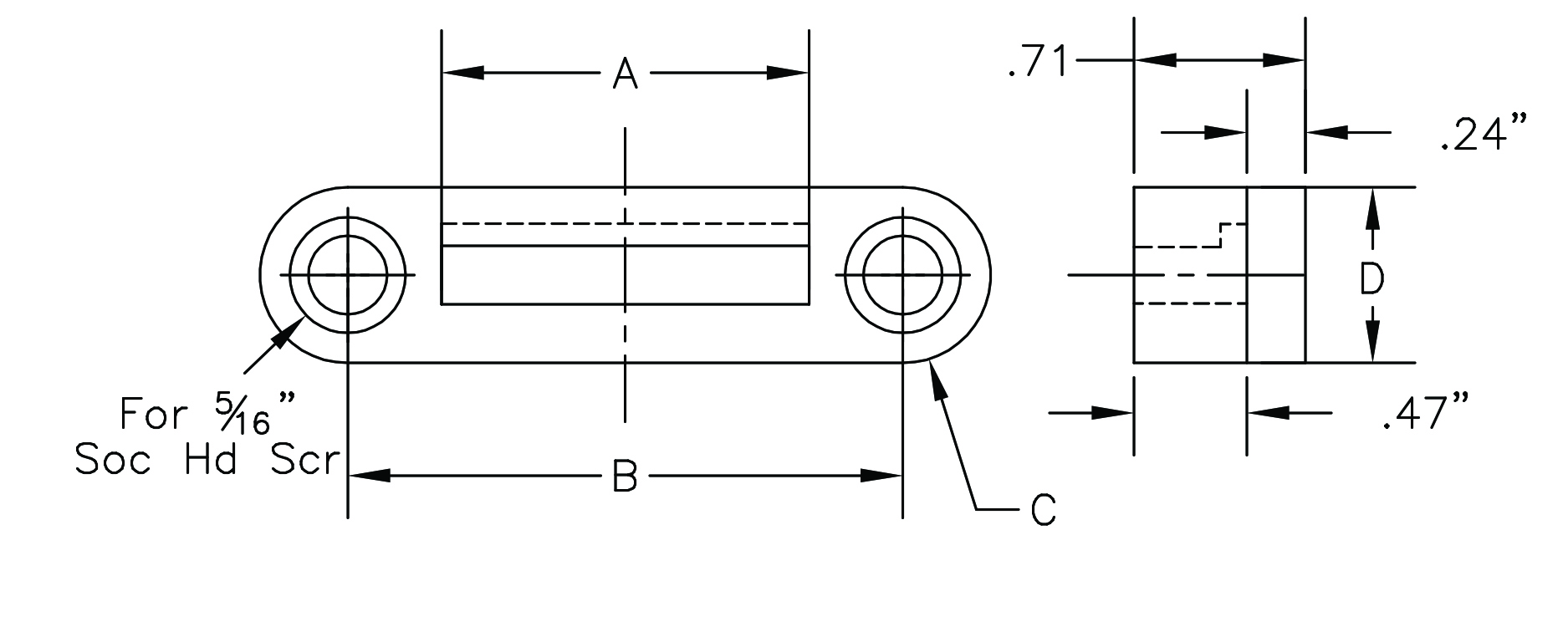

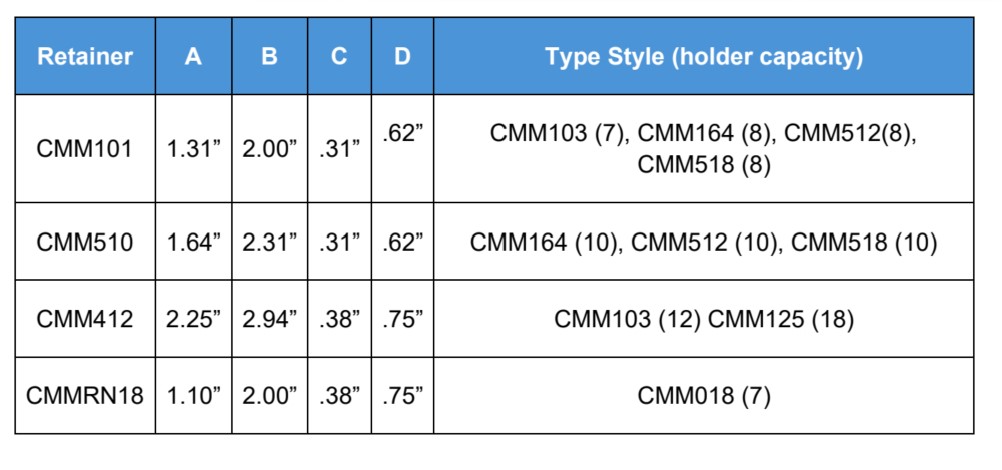

L-Shaped Retainer STANDARD

L-Shaped Retainer 2-LINE

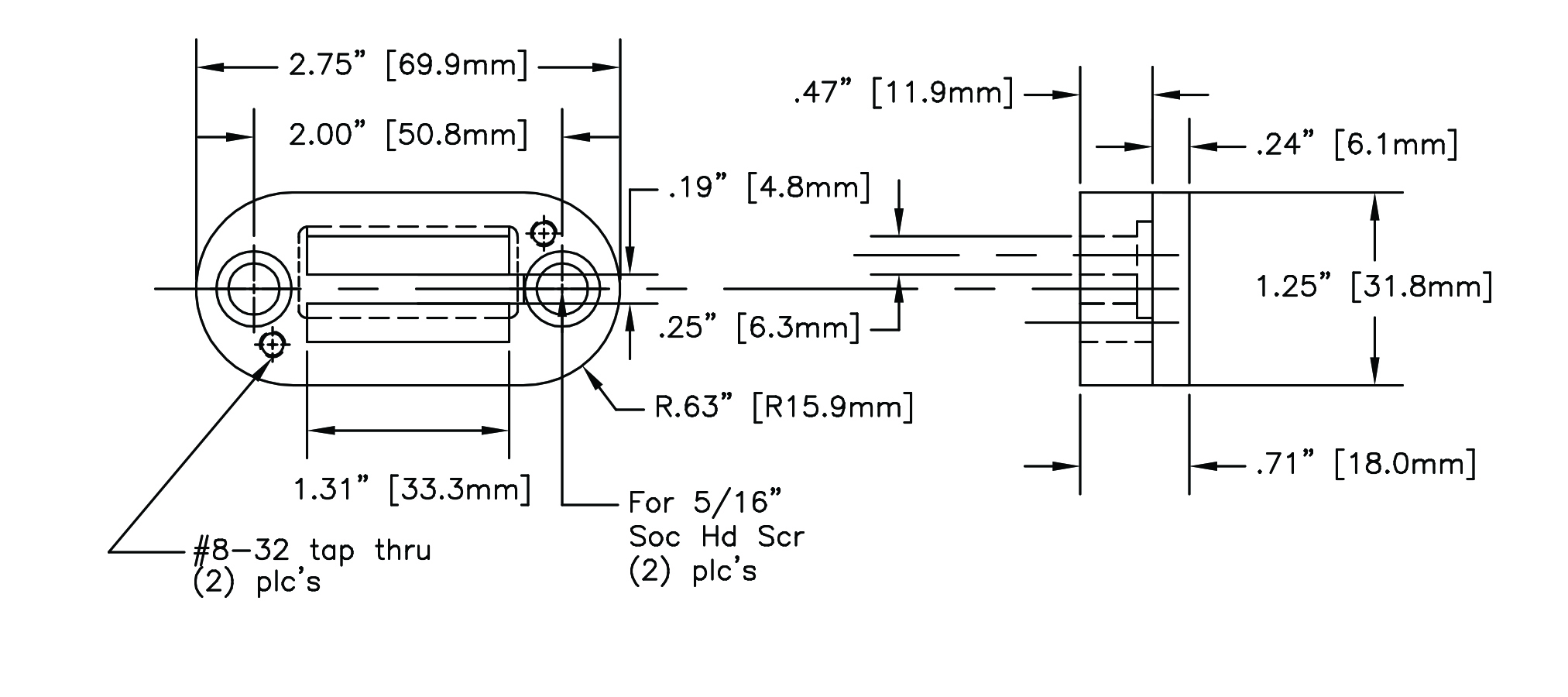

CMM106/CMM107 Standard 2 Line Retainer

CMM106/CM106 Retainer and Backing Plate Set

Each row holds (7) CMM103, (8) CMM512, (8) CMM164, (8) CMM512

CMM L-Shaped 2-Line Retainer

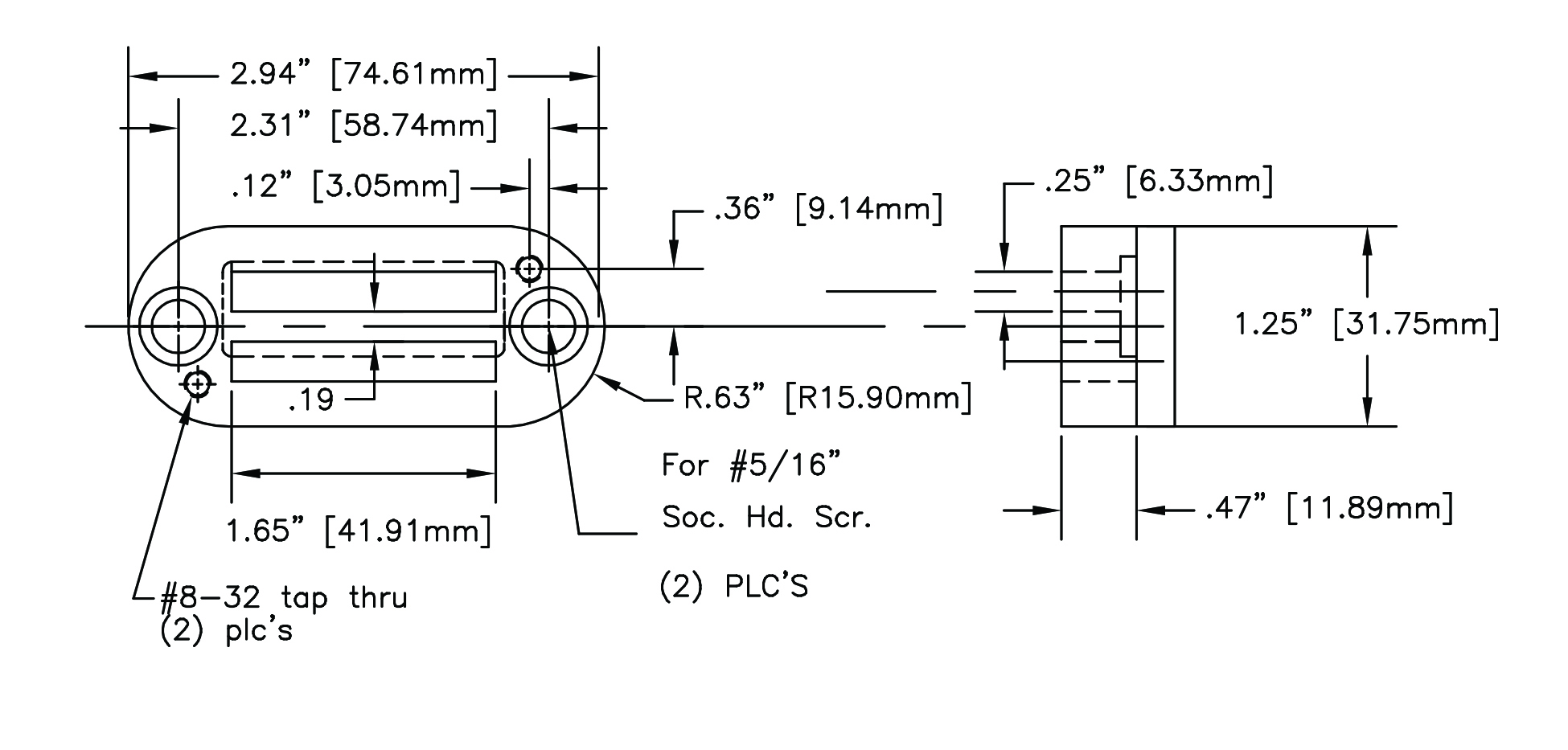

CMM520/CMM521 Large 2 Line Retainer

CMM502/CMM521 Retainer and Backing Plate Set

Each row holds (10) CMM512, (10) CMM164, (10) CMM512

CMM L-Shaped 2-Line Retainer
