postheadericon Dove Tail Holder

Printer Friendly Quote

Columbia's dove tail mounted holders are quick-change tooling for our roll marking machines. The holders use S style steel stamps and have a retaining clip to secure type and/or logo dies. This standard type lock allows remarkable time savings when changing marking legends.

divider

Dove Tail Mount How to Order Chart

Catalog #
Maximum Number of Characters
Dims
1/16
3/32
1/8
5/16
3/16
1/4
A
B
C
DMA-20
32
21
16
-
-
-
2
1/4
4.5
DMA-30
48
32
24
-
-
-
3
1/4
4.5
DMB-30
-
-
-
16
16
-
3
5/16
4.5
DMC-30
-
-
-
-
-
12
3
3/8
4.5

Series DM Holders:

dovetail mount drawintg

divider

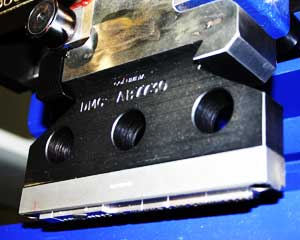

closeup of dovetail mount

DMC-30 dove tail style holder shown above
