Overview of Classic multi-character hand stamping

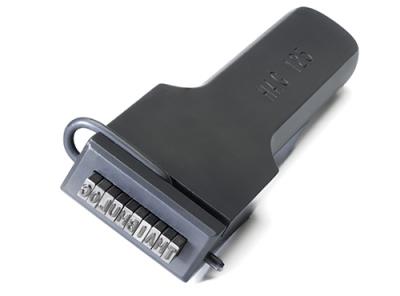

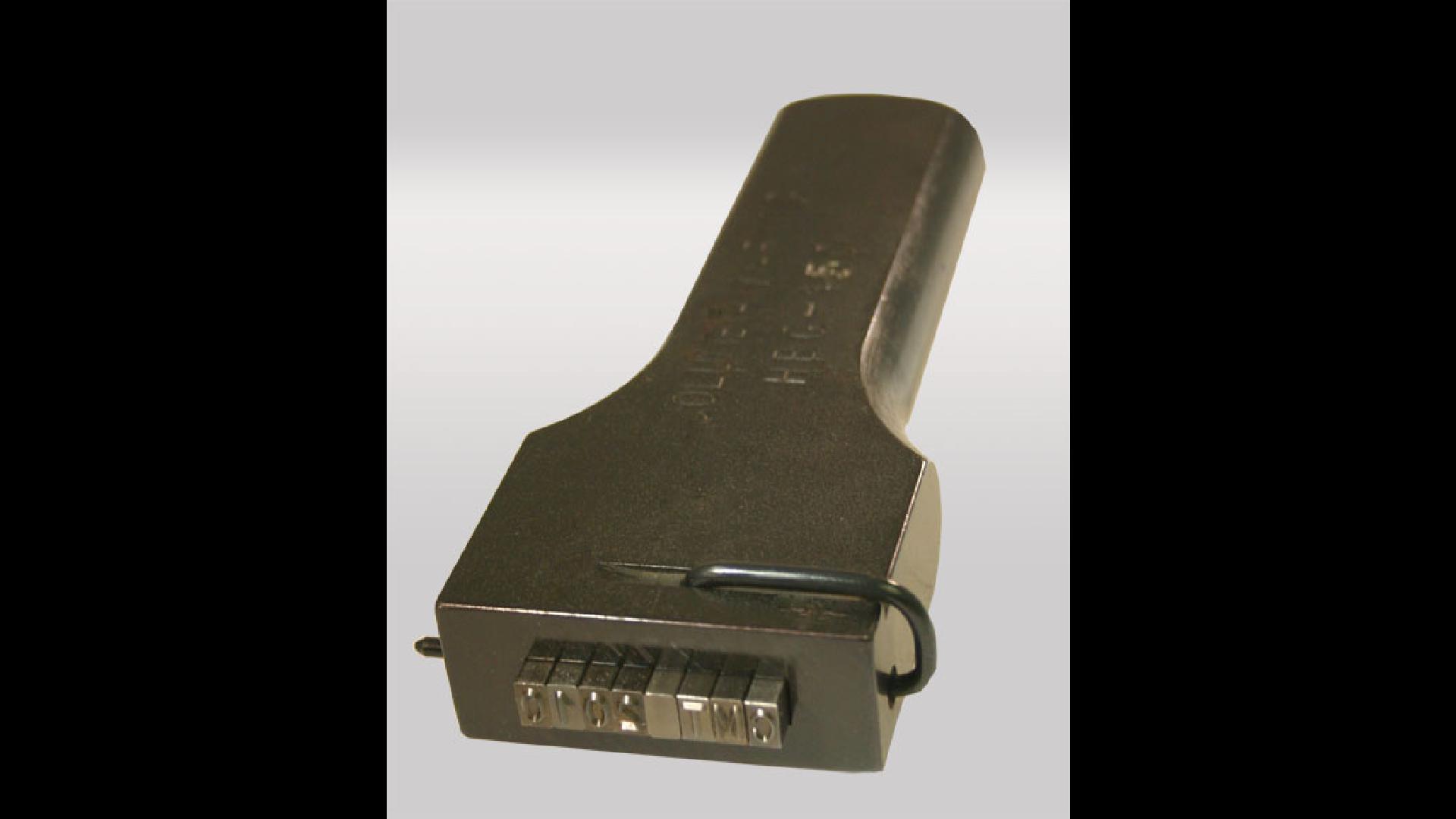

HAG50 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1/2" x 1/4" (not depicted in photo).
1. Solid frame with large hand hold area
2. Made from Carbon Steel
3. Machined pocket with even backup for die set
4. Integrated stamp pocket/holder
5. Spring steel clip to retain stamps in pocket (HG detail 3)

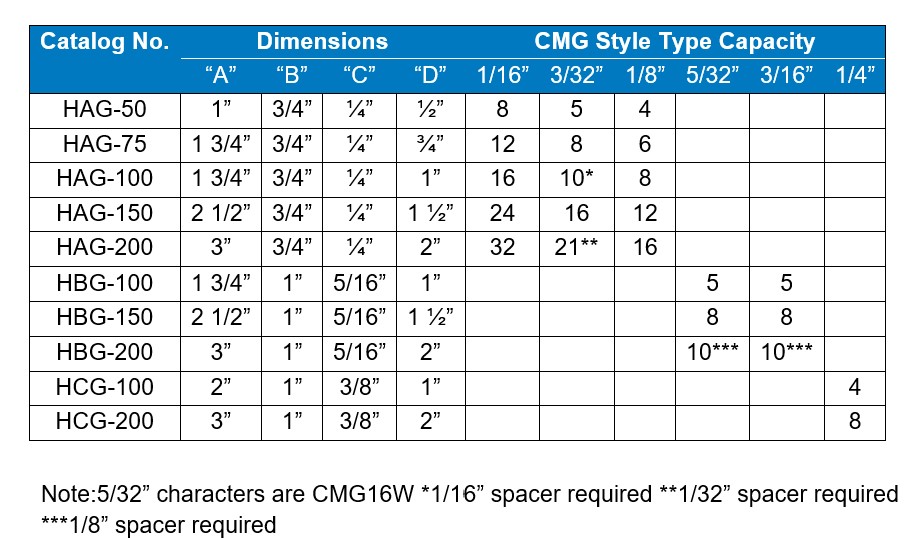

8 of 1/16" (CMG06 Groove Type)
5 of 3/32" (CMG09 Groove Type)
4 of 1/8" (CMG13 Groove Type)

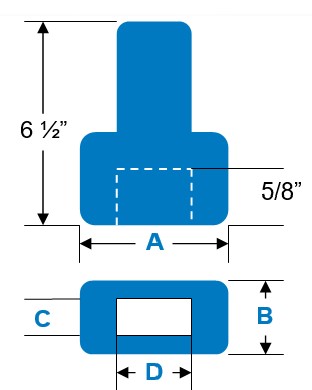

Length 6 1/2"
Width A = 1"
Depth B = 3/4"
Pocket Height C = 1/4"
Pocket Width D = 1/2"
Operation Guide
Video
FAQ
HAG75 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 3/4" x 1/4" (not depicted in photo).
12 of 1/16" (CMG06 Groove Type)
8 of 3/32" (CMG09 Groove Type)
6 of 1/8" (CMG13 Groove Type)
Width A = 1" 3/4"
Pocket Width D = 3/4"
HAG100 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1" x 1/4" (not depicted in photo).
16 of 1/16" (CMG06 Groove Type)
10 of 3/32" (with a 1/32" spacer CMG0300) (CMG09 Groove Type)
8 of 1/8" (CMG13 Groove Type)
Pocket Width D = 1"
HAG150 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 1/4" (not depicted in photo).
24 of 1/16" (CMG06 Groove Type)
16 of 3/32" (CMG09 Groove Type)
12 of 1/8" (CMG13 Groove Type)
Width A = 2 1/2"
Pocket Width D = 1 1/2"
HAG200 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 2" x 1/4" (not depicted in photo).
32 of 1/16" (CMG06 Groove Type)
21 of 3/32" (requires a 1/32" spacer CMG0300)(CMG09 Groove Type)
16 of 1/8" (CMG13 Groove Type)
Width A = 3"
Pocket Width D = 2"
HBG100 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1" x 5/16" (not depicted in photo).
5 of 5/32" (CMG16W Groove Type)
5 of 3/16" (CMG19 Groove Type)
Depth B = 1"
Pocket Height C = 5/16"
HBG150 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 5/16" (not depicted in photo).
8 of 5/32" (CMG16W Groove Type)
8 of 3/16" (CMG19 Groove Type)
Width A = 2" 1/2"
HBG200 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 2" x 5/16" (not depicted in photo).
10 of 5/32" (with a 1/8" spacer CMG1300)(CMG16W Groove Type)
10 of 3/16" (with a 1/8" spacer CMG1300)(CMG19 Groove Type)
Width A = 3
HCG100 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 1" x 3/8" (not depicted in photo).
4 of 1/4" (CMG25 Groove Type)
Width A = 2"
Pocket Height C = 3/8"
HCG200 Standard Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The standard release uses a spring clip to retain type with a groove (CMG standard type) in the stamp pocket. The stamp pocket is rectangular 2" x 3/8" (not depicted in photo).
8 of 1/4" (CMG25 Groove Type)
Rectangular groove type for use with ALL HG Hand holders
Storage and organization for Holder and Type
Spring Clip used for all HG Hand Holders
