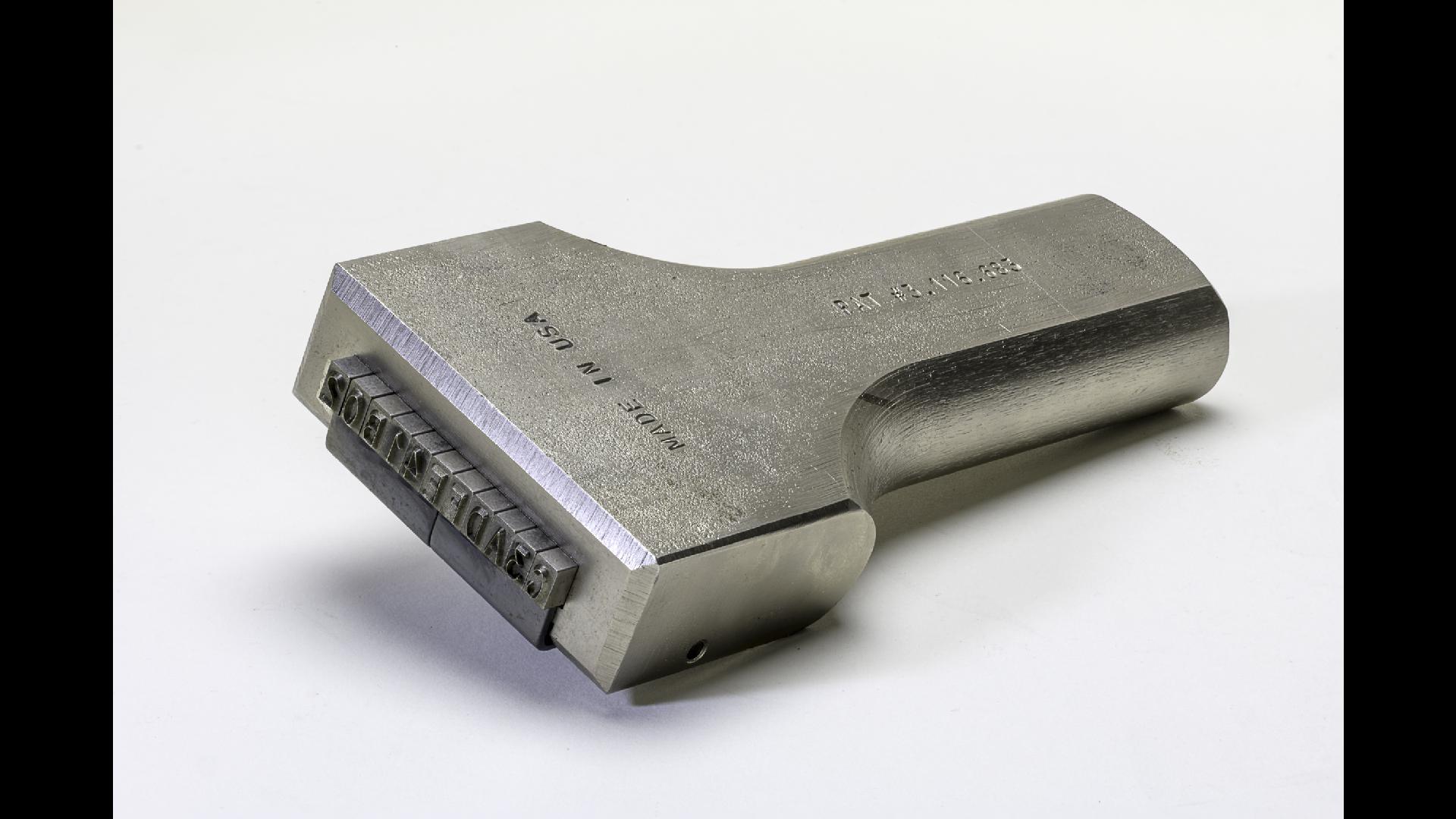

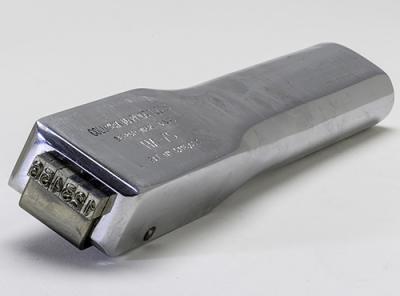

HA50 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1/2" x 1/4" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3 Compression Spring, HH-4 Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

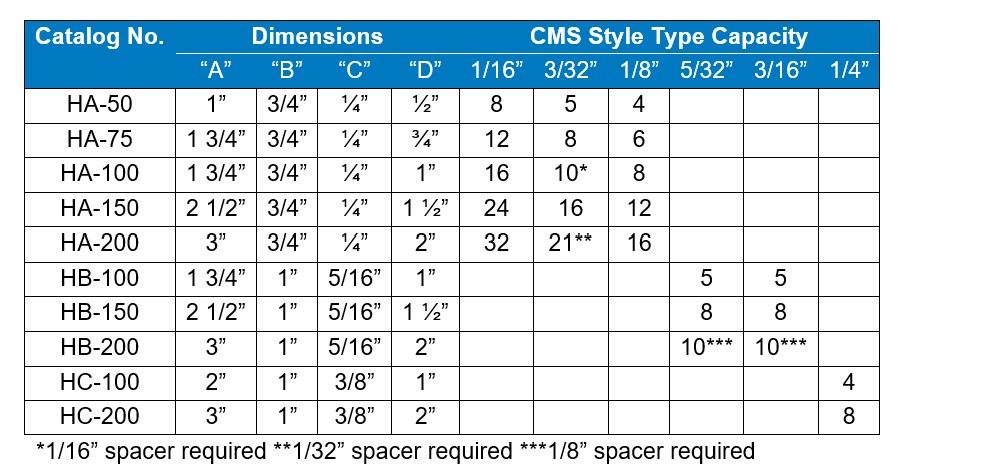

Type Capacity

8 of 1/16" (CMS06 Step Type)

5 of 3/32" (CMS09 Step Type)

4 of 1/8" (CMS13 Step Type)

Specifications

Length 6 1/2"

Width A = 1"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1/2"

Links

Operation Guide

Video

FAQ

HA75 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 3/4" x 1/4" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3 Compression Spring, HH-4 Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

12 of 1/16" (CMS06 Step Type)

8 of 3/32" (CMS09 Step Type)

6 of 1/8" (CMS13 Step Type)

Specifications

Length 6 1/2"

Width A = 1" 3/4"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 3/4"

Links

Operation Guide

Video

FAQ

HA100 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 1/4" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3 Compression Spring, HH-4 Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

16 of 1/16" (CMS06 Step Type)

10 of 3/32" (with a 1/32" spacer CMS0300) (CMS09 Step Type)

8 of 1/8" (CMS13 Step Type)

Specifications

Length 6 1/2"

Width A = 1" 3/4"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1"

Links

Operation Guide

Video

FAQ

HA150 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 1/4" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3L Compression Spring, HH-4L Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

24 of 1/16" (CMS06 Step Type)

16 of 3/32" (CMS09 Step Type)

12 of 1/8" (CMS13 Step Type)

Specifications

Length 6 1/2"

Width A = 2 1/2"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 1 1/2"

Links

Operation Guide

Video

FAQ

HA200 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 1/4" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3L Compression Spring, HH-4L Spring clip, and HH-5L Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

32 of 1/16" (CMS06 Step Type)

21 of 3/32" (requires a 1/32" spacer CMS0300)(CMs09 Step Type)

16 of 1/8" (CMS13 Step Type)

Specifications

Length 6 1/2"

Width A = 3"

Depth B = 3/4"

Pocket Height C = 1/4"

Pocket Width D = 2"

Links

Operation Guide

Video

FAQ

HB100 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 5/16" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3 Compression Spring, HH-4 Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

5 of 5/32" (CMS16 Step Type)

5 of 3/16" (CMS19 Step Type)

Specifications

Length 6 1/2"

Width A = 1" 3/4"

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 1"

Links

Operation Guide

Video

FAQ

HB150 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1 1/2" x 5/16" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3L Compression Spring, HH-4L Spring clip, and HH-5L Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

8 of 5/32" (CMS16 Step Type)

8 of 3/16" (CMS19 Step Type)

Specifications

Length 6 1/2"

Width A = 2" 1/2"

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 1 1/2"

Links

Operation Guide

Video

FAQ

HB200 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 5/16" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3L Compression Spring, HH-4L Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

10 of 5/32" (with a 1/8" spacer CMS1300)(CMS16 Step Type)

10 of 3/16" (with a 1/8" spacer CMS1300)(CMS19 Step Type)

Specifications

Length 6 1/2"

Width A = 3

Depth B = 1"

Pocket Height C = 5/16"

Pocket Width D = 2"

Links

Operation Guide

Video

FAQ

HC100 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 1" x 3/8" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3 Compression Spring, HH-4 Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

4 of 1/4" (CMS25 Step Type)

Specifications

Length 6 1/2"

Width A = 2"

Depth B = 1"

Pocket Height C = 3/8"

Pocket Width D = 1"

Links

Operation Guide

Video

FAQ

HC200 Quick Release Hand Holder is designed for safety and durability. The 6 1/2" long and oversized shank allows operator to place full hand safely on shank. The Quick Release uses a push clip to retain type. Presses on one end lifts the other end of the clip and releases the type. CMS, step type is used in the stamp pocket. The stamp pocket is rectangular 2" x 3/8" (not depicted in photo).

Features

1. Solid frame with large hand hold area

2. Made from Carbon Steel

3. Machined pocket with even backup for die set

4. Integrated stamp pocket/holder

5. HH-3L Compression Spring, HH-4L Spring clip, and HH-5 Pin are used together to retain stamps in pocket (HH Spare Parts)

Type Capacity

8 of 1/4" (CMGS5 Step Type)

Specifications

Length 6 1/2"

Width A = 3"

Depth B = 1"

Pocket Height C = 3/8"

Pocket Width D = 2"

Links

Operation Guide

Video

FAQ
