Model 88 3 Ton Single Acting Air Impact Marker

Prev 1 2 3 Next

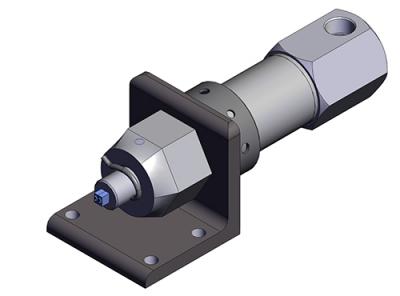

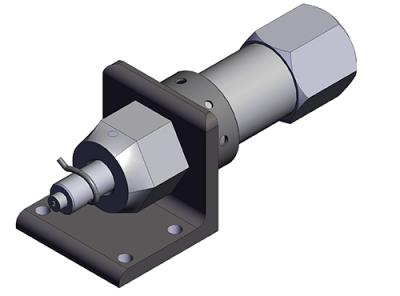

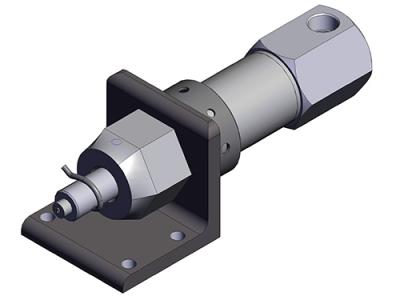

88R-OA-SF 3-ton Air Impact Marker ~~$631.99~~ $568.79 Online Sale! 088ROASF 88R-OA-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Reverse angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located on the side of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88R-OB-EF 3-ton Air Impact Marker ~~$390.78~~ $351.70 Online Sale! 088ROBEF 88R-OB-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round. Features 1. Reverse angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to hold (1) round CM8X insert. 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88R-OB-SF 3-ton Air Impact Marker ~~$485.10~~ $436.59 Online Sale! 088ROBSF 88-OB-SF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round. Features 1. Reverse angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located on the side of the marker 4. Integrated stamp holder to hold (1) round CM8X insert. 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity

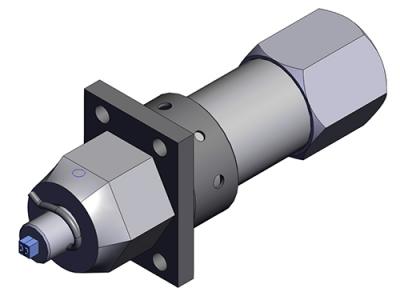

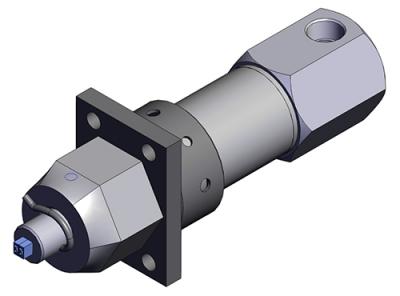

88SP-OA-EF 3-ton Air Impact Marker ~~$537.66~~ $483.89 Online Sale! 088SPOAEF 88R-OA-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Sub-Plate mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88SP-OAS38-EF 3-ton Air Impact Marker ~~$578.08~~ $520.28 Online Sale! 088SPOA38EF 88SP-OAS38-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 3/8". Features 1. Sub-Plate mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to holder either (6) 1/16" characters CMG06 or (3) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88SP-OA-SF 3-ton Air Impact Marker ~~$631.99~~ $568.79 Online Sale! 088SPOASF 88R-OA-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Sub-Plate mount 2. Keyed rod to maintain stamp orientation 3. Air connection located on the side of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity

Prev 1 2 3 Next

Model 88 - 3 Ton Single Acting Air Impact Marker
