Model 88 3 Ton Single Acting Air Impact Marker

1 2 3 Next

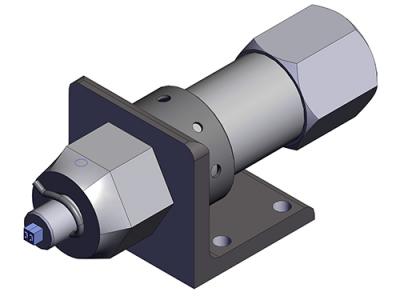

88-OA-EF 3-ton Air Impact Marker ~~$537.66~~ $483.89 Online Sale! 088OAEF 88-OA-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Standard angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88-OAS47-EF 3-ton Air Impact Marker ~~$578.08~~ $520.28 Online Sale! 088OAS47EF 88-OA47-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 15/32". Features 1. Standard angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to holder either (5) 3/32" characters CMG09 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88-OA-SF 3-ton Air Impact Marker ~~$631.99~~ $568.79 Online Sale! 088OASF 88-OA-SF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Standard angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located on the side of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity

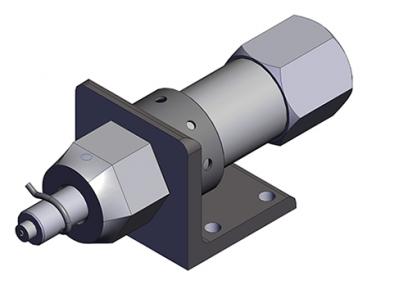

88-OB-EF 3-ton Air Impact Marker ~~$390.78~~ $351.70 Online Sale! 088OBEF 88-OB-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round. Features 1. Standard angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to hold (1) round CM8X insert. 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88-OB-SF 3-ton Air Impact Marker ~~$485.10~~ $436.59 Online Sale! 088OBSF 88-OB-SF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is 3/8" round. Features 1. Standard angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located on the side of the marker 4. Integrated stamp holder to hold (1) round CM8X insert. 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity	88R-OA-EF 3-ton Air Impact Marker ~~$537.66~~ $483.89 Online Sale! 088ROAEF 88R-OA-EF 3-ton Air impact marker is single acting with spring return action. The model 88 is a compact and rugged air powered marking unit. The powerful 6000 lbs of instantaneous impact force will mark ID and date codes into soft metals. The stamp holder is square 1/4" x 1/4". Features 1. Reverse angle bracket mount 2. Keyed rod to maintain stamp orientation 3. Air connection located at the back of the marker 4. Integrated stamp holder to holder either (4) 1/16" characters CMG06 or (2) 1/8" characters CMG13 5. Removable rear end cap for maintenance 6. Stamp pin to hold stamp in place (one provided with unit, but this is considered a wearable part please purchase extra) 7. Filter for air intake Specifications Requires compressed air, connection 3/8" NPT Operating Pressure Range - 20-80 PSI [1.3-5.5 Ba] Max Pressure 1500 Lbs. [26.7 kN] impact Force Dimensions – 8.25” x 3” x 3” [209.6mm x 76.2mm x 76.2mm] Weight – 8 Lbs. [1.36 Kg] Links Operation Guide Video FAQ Quantity

1 2 3 Next

Model 88 - 3 Ton Single Acting Air Impact Marker
