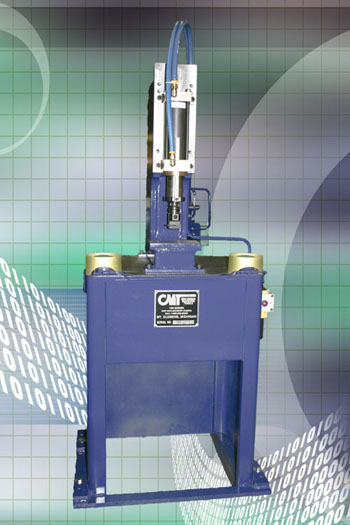

postheadericonMetal Marking Press: Slide-A-Mark 8 & 10 ton

Printer Friendly Quote

The PR751 and PR851are truly versatile marking machines. Any mark stamped with a hammer blow can be marked using these presses. Marking pressures can be controlled from 1 to 10 tons. CMT offers a wide range of tooling and accessories to adapt this machine to your specific marking application.





A Note About Stamping Pressure
 The impact pressure required for a metal marking appliation is dependent on three variables:

  • Character size
  • Material being marked
  • Number of characters

Please provide us with this information when requesting a quotation on one of CMT's Impact presses.





CMT offers 2 standard complete bench style machine packages for the PR751 and PR851 impact marking systems:

Basic Model PR751 includes:

  • Heavy duty, steel bench top frame
  • Double acting pneumatic press*
  • Keyed non-rotating rod
  • Slide-A-Mark automatic air impact marker
  • Air valve
  • Air filter, pressure regulator, lubricator, and OSHA required, air shut-off valve with lockout
  • Dual, anti-tie down, anti-repeat palm buttons
  • Choice of mounting style for tooling
 Optional Equipment:
  • XY positioning tables
  • Manual & air powered slide feed fixture
  • All air or air/electric control systems
  • Rotary tables
  • Pre-determining digital counter
  • Part present cycle start
  • Feeder bowls
  • Auto-feed & eject systems
  • Assembly (staking) operations
  • Vision systmes numberin gheads
  • Safety enclosures
  • Light curtain safety systems
  • Custom machine bases



Slide-A-Mark Press Sample Mark

Deluxe Model PR751-D includes:

  • Heavy duty, steel bench top frame
  • Double acting pneumatic press*
  • Keyed non-rotating rod
  • Slide-A-Mark automatic air impact marker including non-lub feature
  • Air valve
  • Air filter, pressure regulator, and OSHA required air, shut-off valve iwth lockout
  • Ergonomic, touch-less, electric, dual, anit-tie down, anti-repeat palm buttons
  • Choice of mounting style for tooling
*Press standard options include stroke length options of 2.5", 4" or 6" and pressure options of 6, 8 or 10 tons.

divider

751K Style Holders

Quick-change stamp holders can be mounted and removed in seconds for fast, simple legend changes. Standard 751K holders use CMG-step style steel type.

751K Style Holder

PR751 K Style Holder Item Number Chart
Item #
"A"
"B"
"C"
1/16"
3/32"
1/8"
5/32"
3/16"
1/4"

751KA5010

0.50

0.25

1.50

8

(5)

4

-

-

-

751KA7510

0.75

0.25

1.50

12

8

6

-

-

-

751KA10010

1.00

0.25

2.25

16

(10)

8

-

-

-

751KA15010

1.50

0.25

2.25

24

16

12

-

-

-

751KA20010

2.00

0.25

3.25

32

(21)

16

-

-

-

751KA25010

2.50

0.25

3.25

40

(26)

20

-

-

-

751KB7510

0.75

0.31

1.50

-

-

-

4

4

-

751KB15010

1.50

0.31

2.25

-

-

-

8

8

-

751KB20010

1.88

0.31

3.25

-

-

-

10

10

-

751KB22510

2.50

0.31

3.25

-

-

-

12

12

-

751KC10010

1.00

0.38

2.25

-

-

-

-

-

4

751KC15010

1.50

0.38

2.25

-

-

-

-

-

6

751KC20010

2.00

0.38

3.25

-

-

-

-

-

8
